Fuel Tank Protector Replacement (Right Side AWD)

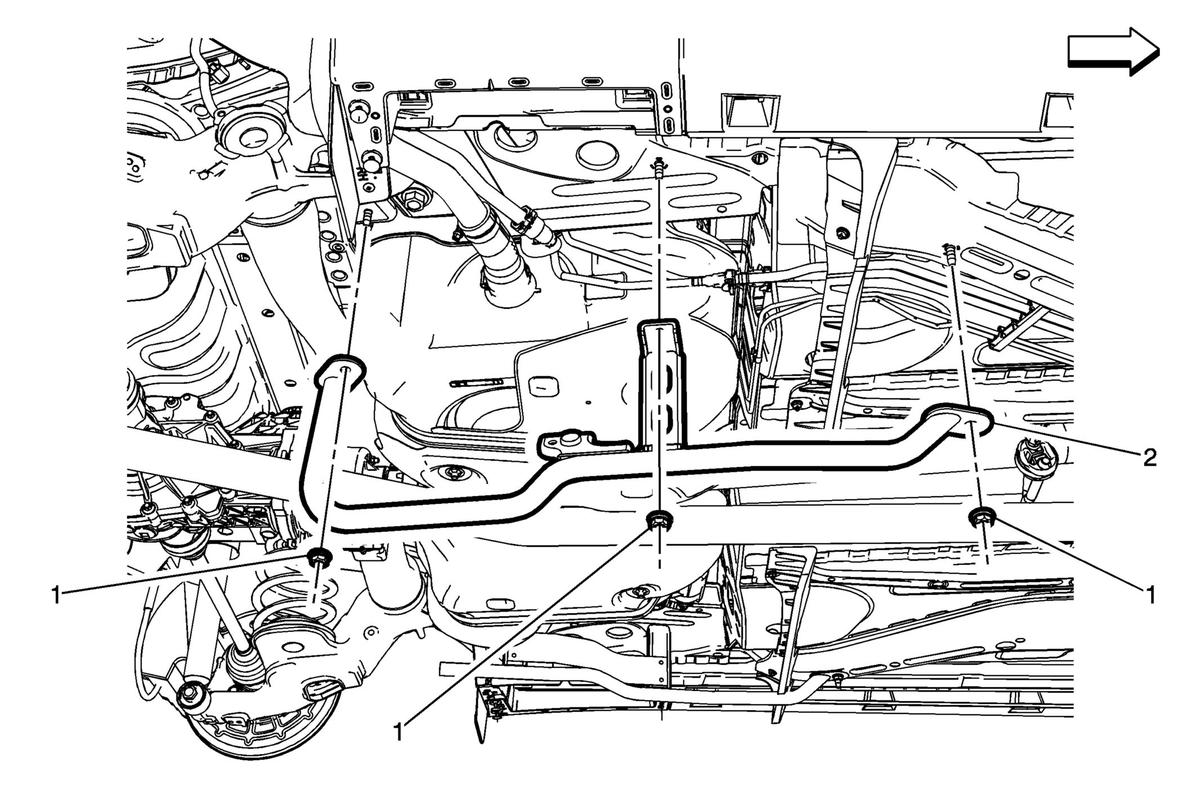

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Fuel Tank Protector Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Fuel Tank Protector Procedure Remove the front right parking brake cable bracket nut and position the parking brake rear cable aside. Parking Brake Rear Cable Replacement (Disc Brake) , or Parking Brake Rear Cable Replacement (Drum Brake) |
