Fuel Tank Protector Replacement (Left Side AWD)

Courtesy of GENERAL MOTORS COMPANY

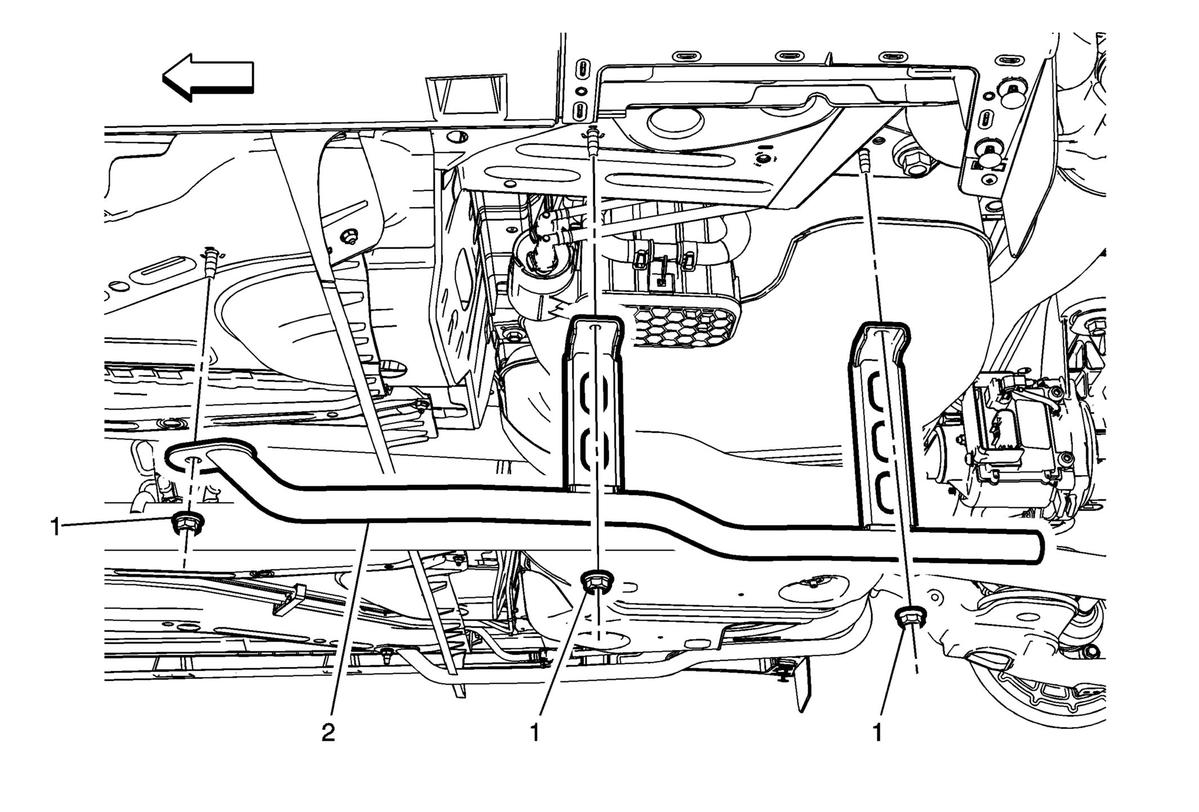

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Tank Protector Nut [3x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Fuel Tank Protector
