Air Cleaner Element Replacement

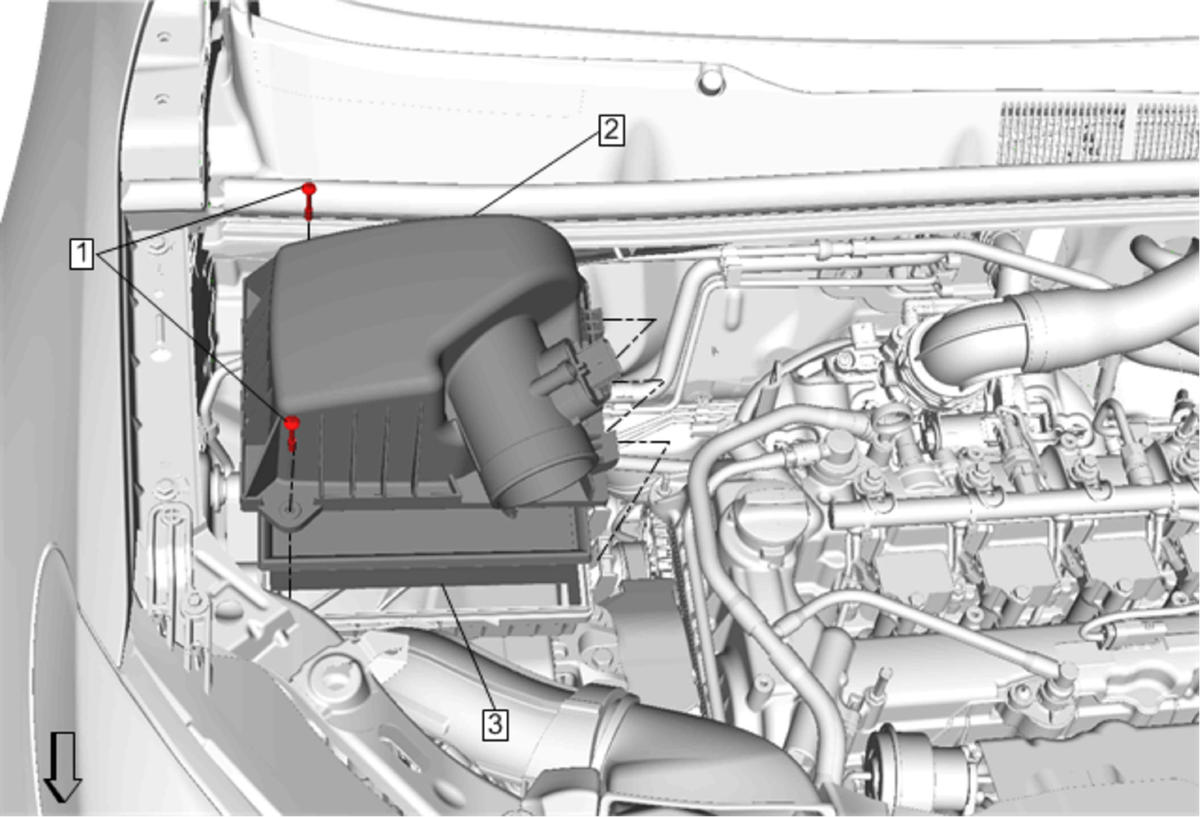

GM4090793Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Upper Housing Bolt [2x]
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Upper Housing
3 Air Cleaner Element
