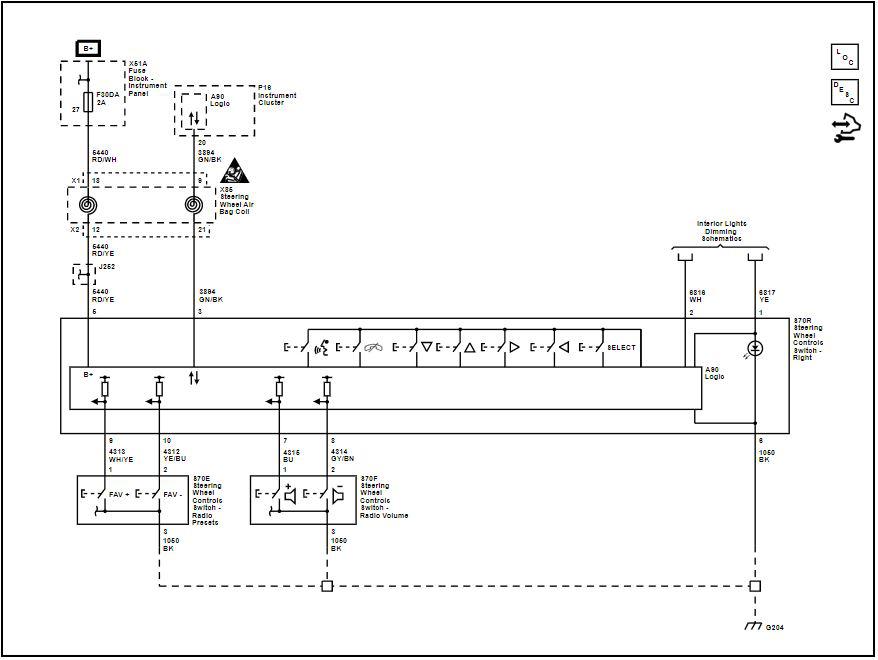

Steering Wheel Secondary/Configurable Control Schematics
>>
Steering Wheel Controls
Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
