Removal Procedure

    CAUTION:

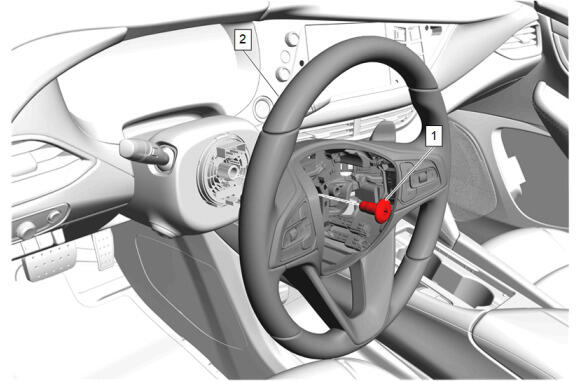

    1. Remove the left and right steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
    2. Steering Wheel Airbag » Remove - Steering Wheel Airbag Replacement Steering Wheel Airbag Replacement
      GM5733134Courtesy of GENERAL MOTORS COMPANY

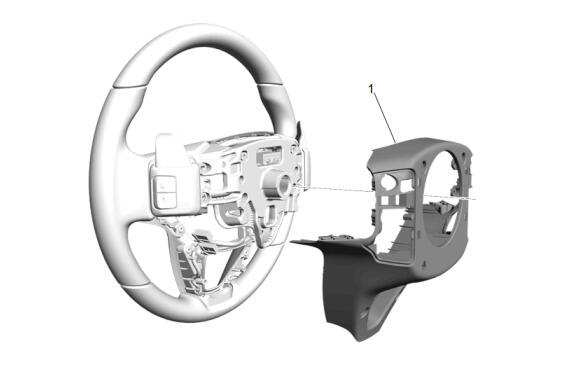

    3. Steering Wheel (2) » Remove - Steering Wheel ReplacementSteering Wheel Replacement
      GM5733396Courtesy of GENERAL MOTORS COMPANY
    4. Steering Wheel Shroud (1) » Remove - Steering Wheel Shroud Replacement

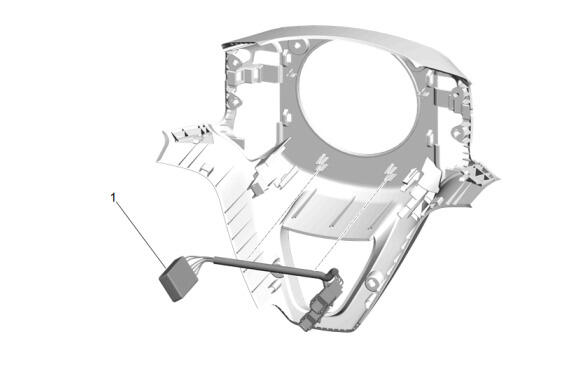

    5. Disconnect the heated steering wheel module electrical connectors.
      GM5735654Courtesy of GENERAL MOTORS COMPANY
    6. Heated Steering Wheel Module (1) » Remove
