Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

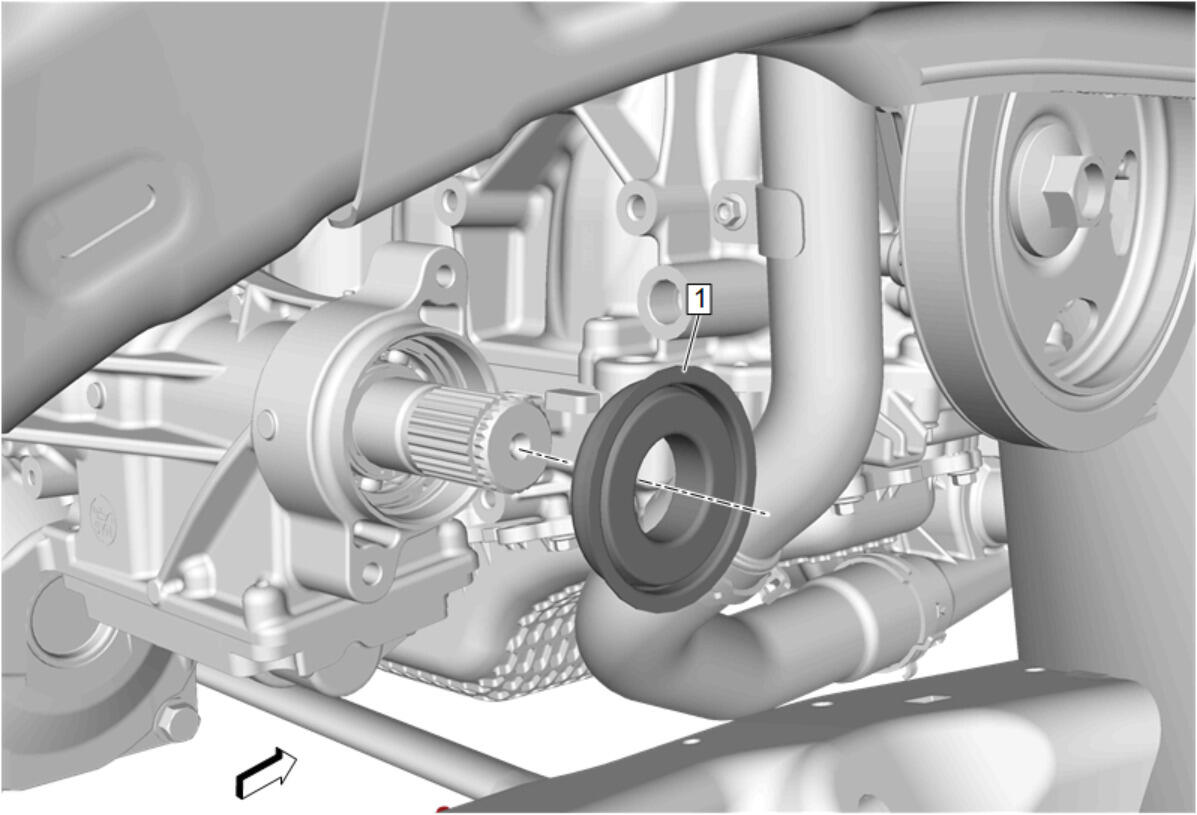

Using DT-51466 Seal Installer and DT-305-1 Driver Handle, install the NEW power transfer unit cover to intermediate drive shaft seal (1).
Courtesy of GENERAL MOTORS COMPANY

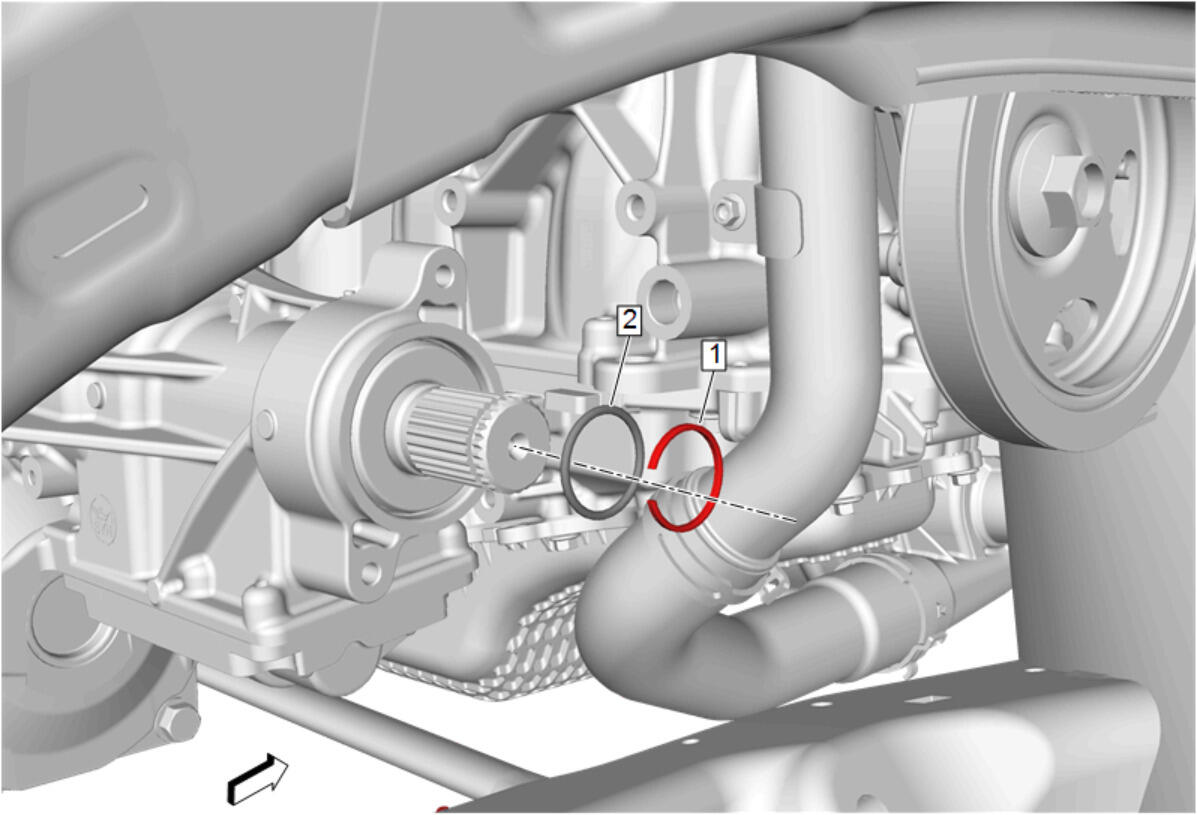

Install the NEW power transfer unit half shaft seal (2).
Install the NEW power transfer unit half shaft retainer clip (1).
Install the power transfer unit bracket. Power Transfer Unit Bracket Replacement
