Installation Procedure

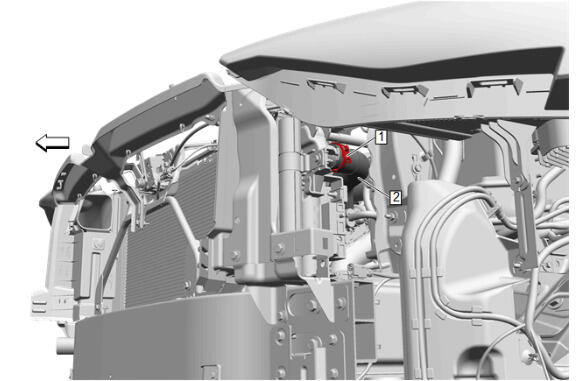

  1. GM5611979Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @ Radiator - Install

  2. Radiator Inlet Hose Clamp (1) - Engage Hose Clamp Replacement Guidelines - Spring Type

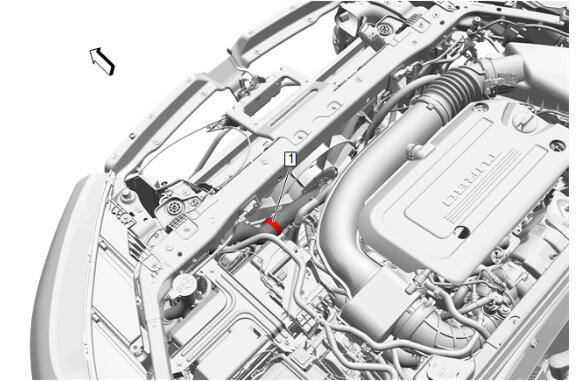

  3. GM5611978Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose Clip (1) @ Charge Air Cooler Inlet Air Tube - Install

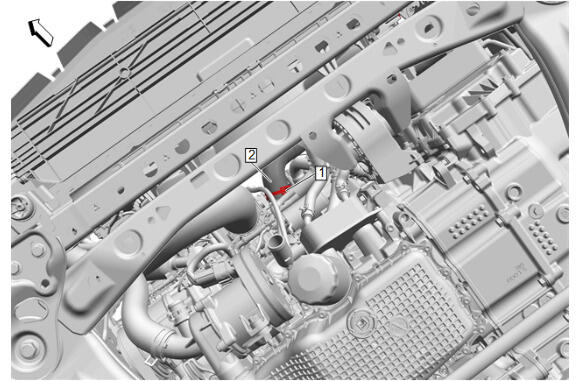

  4. GM5611977Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @ Engine Coolant Thermostat Housing - Install

  5. Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

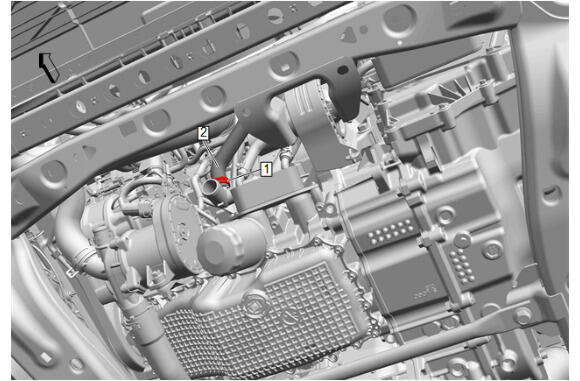

  6. GM5611976Courtesy of GENERAL MOTORS COMPANY

    Thermostat Bypass Hose (2) @ Thermostat Bypass Hose Connector - Install

  7. Thermostat Bypass Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

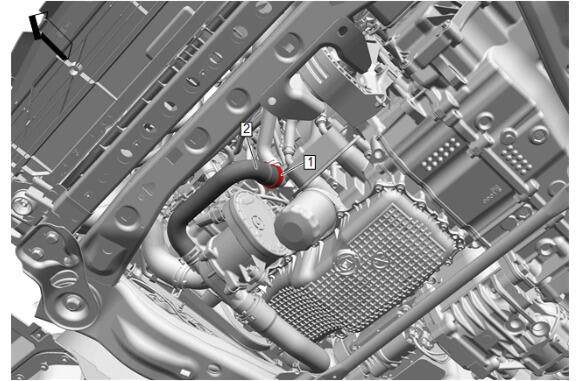

  8. GM5611975Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Air Bleed Hose (2) @ Thermostat Bypass Hose Connector - Install

  9. Engine Coolant Air Bleed Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  10. GM5582467Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector (3) - Install - Front Compartment Air Deflector Replacement (Base)

  11. GM5591673Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation

  12. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
  13. Start the engine and check for coolant leaks.
