Front Floor Console Extension Panel Replacement - Left Side

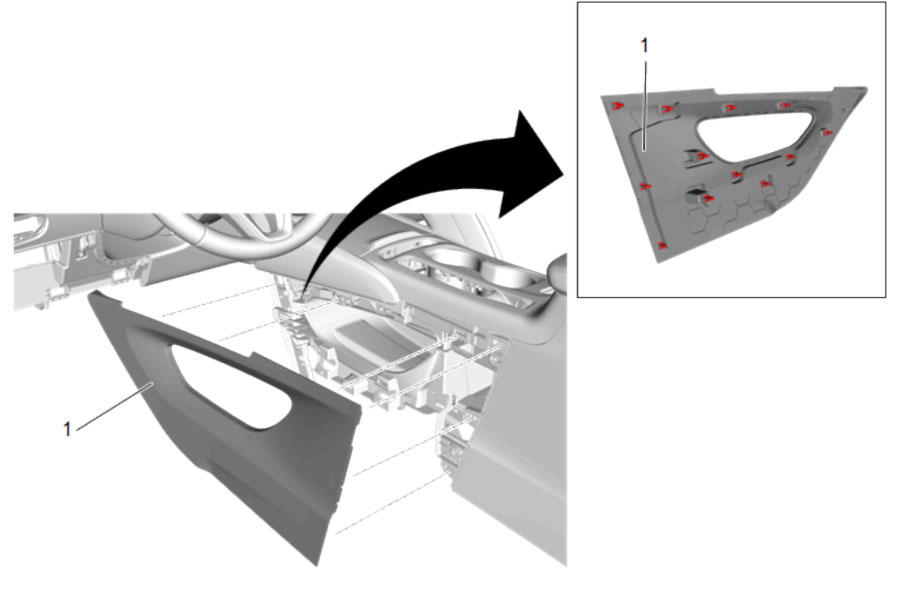

GM5568708Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Extension Panel - Left Side
Procedure
Use a flat bladed plastic tool to remove.
