Liftgate Latch Striker Replacement

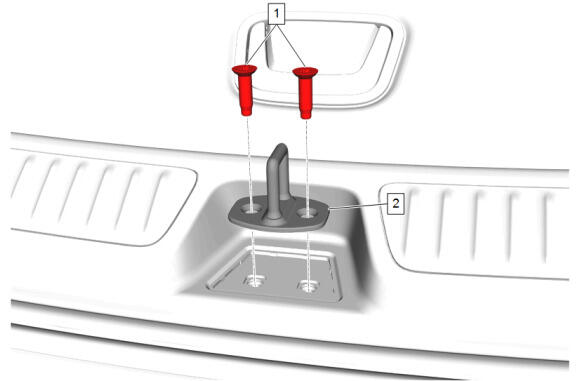

GM5591647Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Latch Cover Replacement
1 Liftgate Latch Striker Bolt [2x]
CAUTION:

Fastener Caution


Procedure
Use a grease pencil to outline the striker before removing the bolts.
Tighten
22 N.m (16 lb ft)
2 Liftgate Latch Striker
Procedure
Adjust the liftgate latch striker after replacing, if needed.
