Front Side Door Outside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

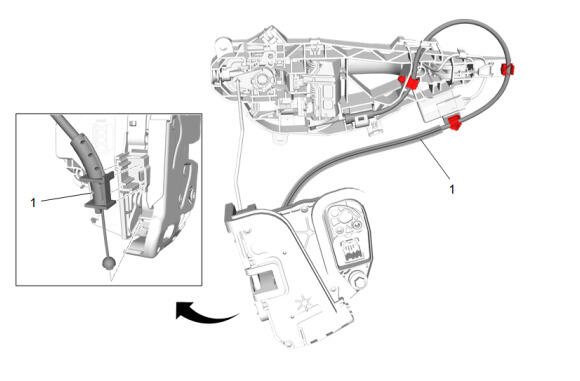

Callout	Component Name
Preliminary Procedure Front Side Door Latch Replacement
1	Front Side Door Outside Handle Cable Procedure Front Side Door Outside Handle Cable - Remove @ Front Side Door Latch Front Side Door Outside Handle Cable - Remove @ Front Side Door Outside Handle Bracket Ensure that the door lock system operates properly.

Callout

Component Name

Front Side Door Outside Handle Cable

Procedure

Front Side Door Outside Handle Cable - Remove @ Front Side Door Latch
Front Side Door Outside Handle Cable - Remove @ Front Side Door Outside Handle Bracket
Ensure that the door lock system operates properly.
