Installation Procedure

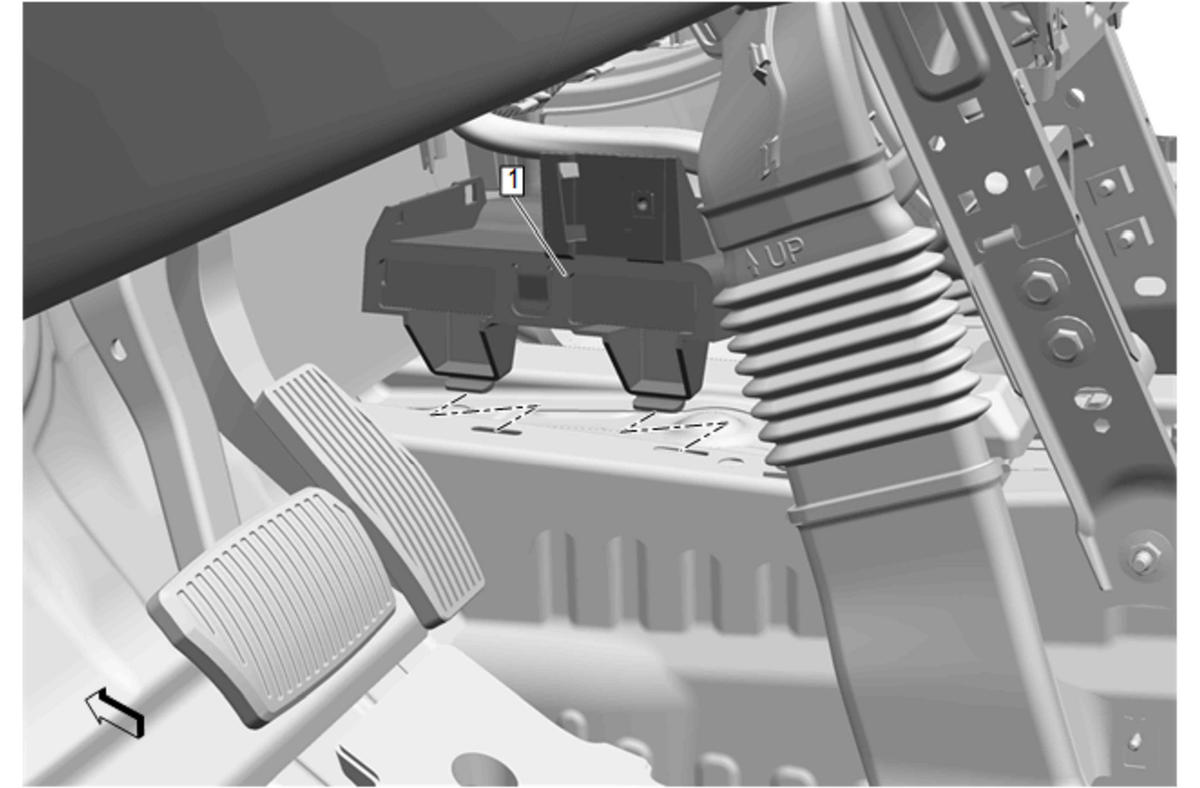

  1. GM5606349Courtesy of GENERAL MOTORS COMPANY

    Body Control Module Bracket (1) - Install

  2. GM5065555Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Body Control Module Bracket Nut (1) - Install and tighten 6 N.m (53 lb in)

  3. Connect the electrical connectors.
  4. Front Floor Panel Carpet - Right Side - Install - Front Floor Panel Carpet Replacement - Right Side
