Home >> Buick >> 2021 >> Envision Preferred, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Power Transfer Unit/Transfer Case - AAM >> Repair Instructions - On Vehicle >> Power Transfer Unit Bracket Replacement >> Installation Procedure

Installation Procedure

  1. GM5064000Courtesy of GENERAL MOTORS COMPANY

    Power Transfer Unit Bracket (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Power Transfer Unit Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

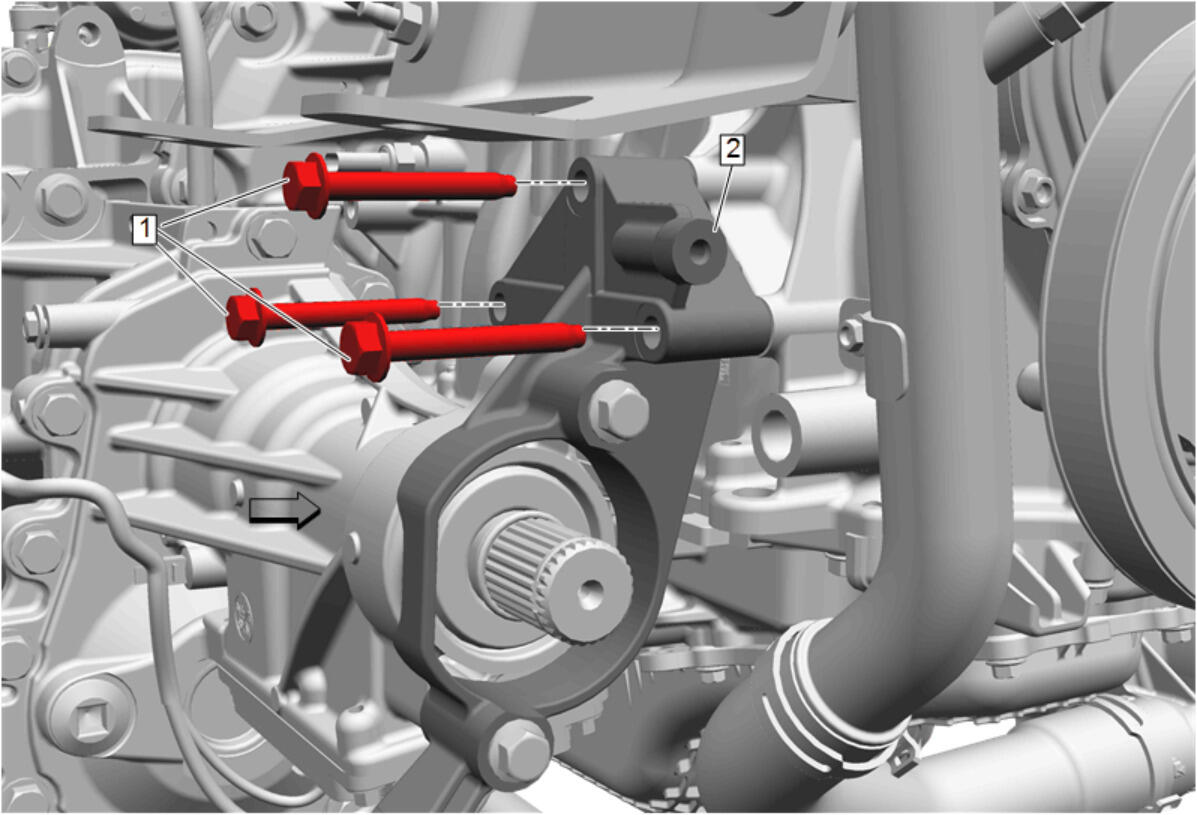

  3. GM5063938Courtesy of GENERAL MOTORS COMPANY

    Power Transfer Unit Bracket Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

  4. Power Transfer Unit Heat Shield - Install - Power Transfer Unit Heat Shield Replacement
  5. Front Wheel Drive Shaft- Right Side - Install - Front Wheel Drive Shaft Replacement - Right Side
