Engine Controls And Fuel - 2.0L (LSY) - Repair Instructions
>>
Repair Instructions
>>
Mass Airflow Sensor Replacement
Mass Airflow Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

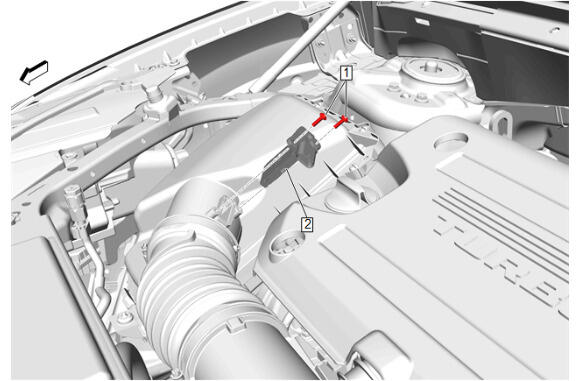

Callout
Component Name
1
Mass Airflow Sensor Bolt [2x]
CAUTION:
Fastener Caution
Tighten
1.4 N.m (12 lb in)
2
Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
