Removal Procedure
- Remove the fuel injection fuel rail assembly. Fuel Injection Fuel Rail Assembly Replacement
Electrical Connector (2) - Disconnect [5x]
- Fuel Injector Wiring Harness (1) - Remove
Ensure the EN-50791-100 Fuel Injector Installation Adapter (2) is mounted to the EN-50791 Injector to Rail Installer (1).
- Install EN-50791 Injector to Rail Installer (1) to the fuel injector (3).
Using EN-50791 Injector to Rail Installer (1), compress the fuel injector (4) into the fuel rail.
- Fuel Injector Retainer (3) - Remove
- Remove the EN-50791 Injector to Rail Installer (1) along with the EN-50791-100 Fuel Injector Installation Adapter (2).
- Repeat the procedure for the other 3 fuel injectors.
Fuel Injector (3) - Remove [4x]

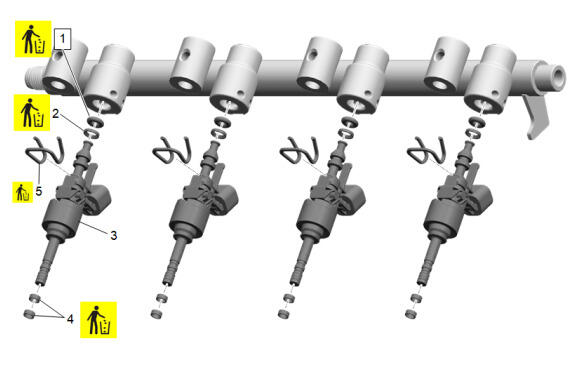

- Fuel Injection Fuel Rail Seal (1) - Remove and DISCARD [4x]
- Fuel Injector Seal Spacer (2) - Remove [4x]
- Direct Fuel Injector Hold Down Clamp (5) - Remove and DISCARD [4x]
- Fuel Injector Nozzle Housing Seal (4) - Remove and DISCARD [8x]
