K47 Rear Drive Control Module X2 (F48)
 Courtesy of GENERAL MOTORS COMPANY
|

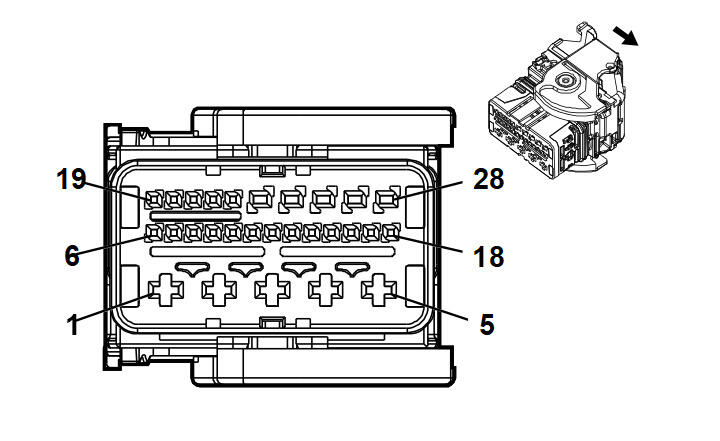

Connector Part Information
- Harness Type: Rear Differential
- OEM Connector: 64318-3011
- Service Connector: Service by Harness - See Part Catalog
- Description: 28 - Way F 0.6, 1.5, 2.8 Series, Sealed (BN with BK Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
WH / VT |
8387 |
All Wheel Drive Motor Phase A Control |
I |
- |
| 2 |
- |
GN / GY |
8388 |
All Wheel Drive Motor Phase B Control |
I |
- |
| 3 |
- |
BU / BN |
8389 |
All Wheel Drive Motor Phase C Control |
I |
- |
| 4 |
- |
BU / BK |
8384 |
All Wheel Drive Clutch High Side Control |
I |
- |
| 5 |
- |
BK / WH |
8395 |
All Wheel Drive Motor Position Sensor Feedback Signal |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
- |
VT / GN |
8390 |
All Wheel Drive Motor Shield |
I |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
- |
YE / BN |
8386 |
All Wheel Drive Clutch 2 Low Side Control |
I |
- |
| 14 |
- |
GY / WH |
8385 |
All Wheel Drive Clutch Low Side Control |
I |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
- |
BN / VT |
8392 |
All Wheel Drive Motor Position Sensor 1 Signal |
I |
- |
| 17 |
- |
WH / BU |
8393 |
All Wheel Drive Motor Position Sensor 2 Signal |
I |
- |
| 18 |
- |
GY / YE |
8394 |
All Wheel Drive Motor Position Sensor 3 Signal |
I |
- |
| 19 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
- |
GN / RD |
8391 |
All Wheel Drive Motor Position Sensor Supply |
I |
- |
