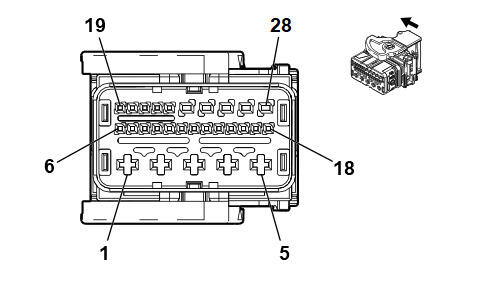

K47 Rear Drive Control Module X1 (F48)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13530400
- Service Connector: Service by Harness - See Part Catalog
- Description: 28 - Way F 0.6, 1.5, 2.8 Series, Sealed (GY with BK Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| III |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
2650 |
Ground |
II |
F48 |
| 2 |
0.5 |
BK / VT |
3846 |
All Wheel Drive Power Transfer Unit Position Sensor Low Reference |
II |
F48 |
| 3 |
2.5 |
RD / WH |
1340 |
Battery Positive Voltage |
II |
F48 |
| 4 |
2.5 |
VT / BN |
3944 |
All Wheel Drive Power Transfer Unit Motor Control A |
II |
F48 |
| 5 |
2.5 |
BN / GN |
3945 |
All Wheel Drive Power Transfer Unit Motor Control B |
II |
F48 |
| 6 |
0.5 |
WH / RD |
3847 |
All Wheel Drive Power Transfer Unit Position Sensor Voltage Reference |
III |
F48 |
| 7 |
0.5 |
GN / BN |
3848 |
All Wheel Drive Power Transfer Unit Position Sensor Signal |
III |
F48 |
| 8 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.5 |
BK |
8383 |
All Wheel Drive Power Transfer Unit Motor Shield |
III |
F48 |
| 17 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
III |
F48-UGN |
| 20 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
III |
F48 |
| 21 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
III |
F48 |
| 22 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
III |
F48-UGN |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.5 |
RD / BN |
3640 |
Battery Positive Voltage |
I |
F48 |
| 25 - 28 |
- |
- |
- |
Not Occupied |
- |
- |
