Installation Procedure

  1. Connect the electrical connectors.

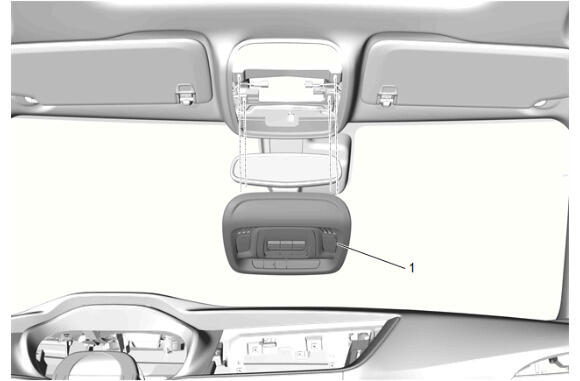

  2. GM5605250Courtesy of GENERAL MOTORS COMPANY

    Install the roof console (1) and 2 roof console tabs into the headliner.

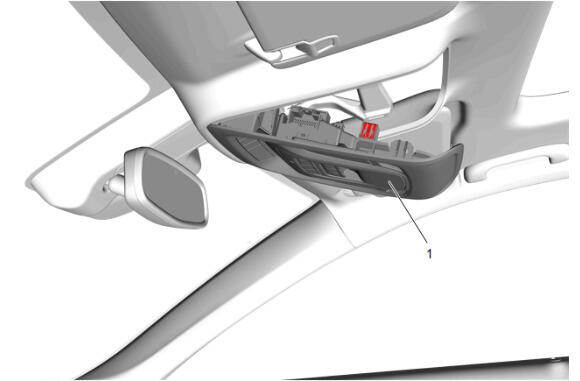

  3. GM5605251Courtesy of GENERAL MOTORS COMPANY

    Push up both sides of the roof console (1) along the retaining clips to install.
