Installation Procedure

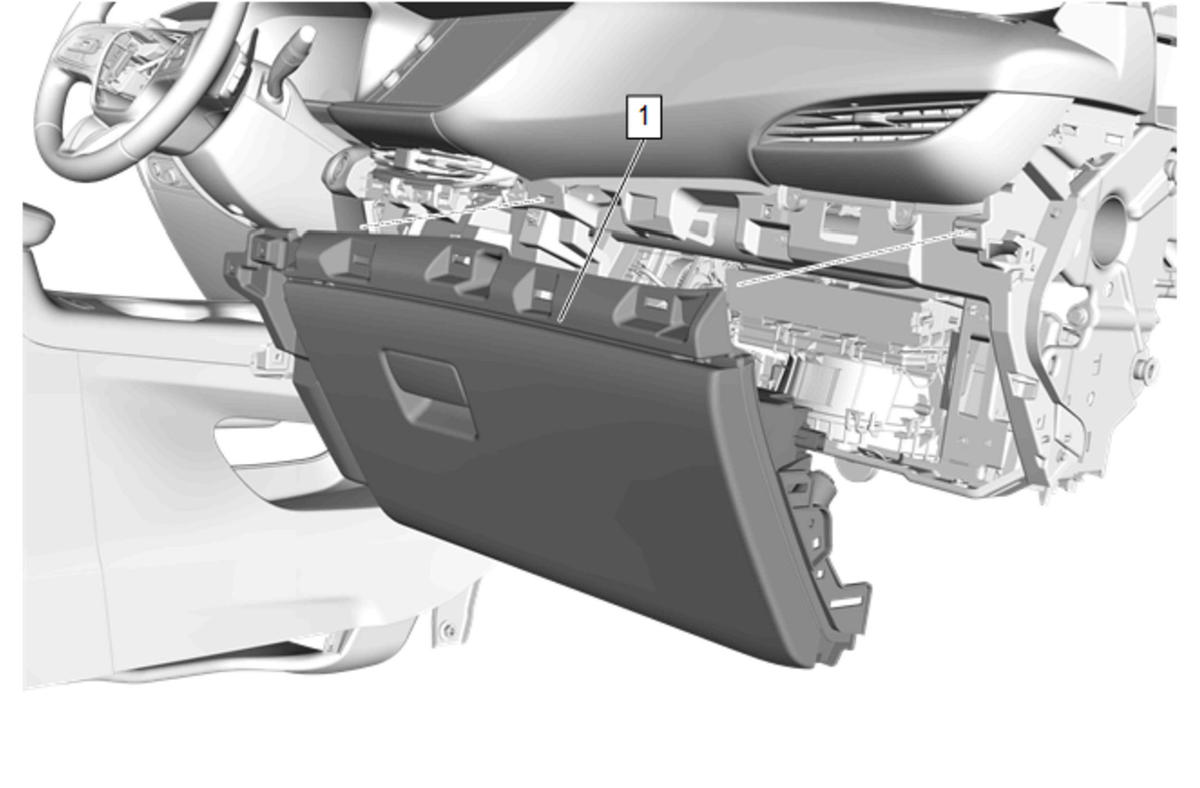

  1. GM5552364Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

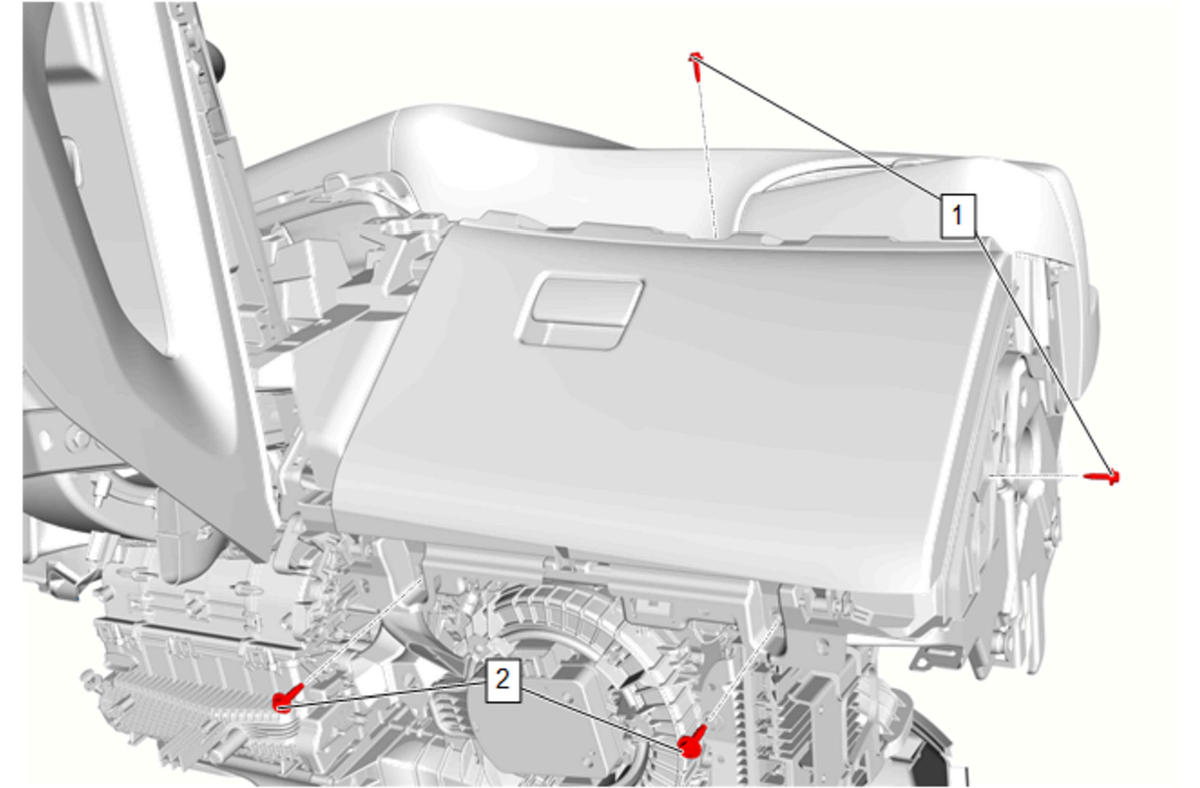

  2. GM5552363Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Bolt- Upper (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  3. Instrument Panel Compartment Bolt- Lower (2) - Install and tighten [2x] 9 N.m (80 lb in)

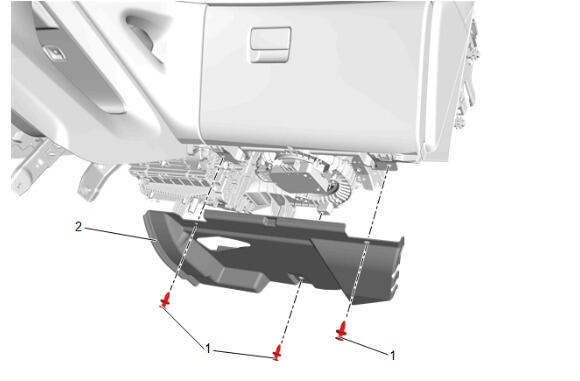

  4. GM5543817Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

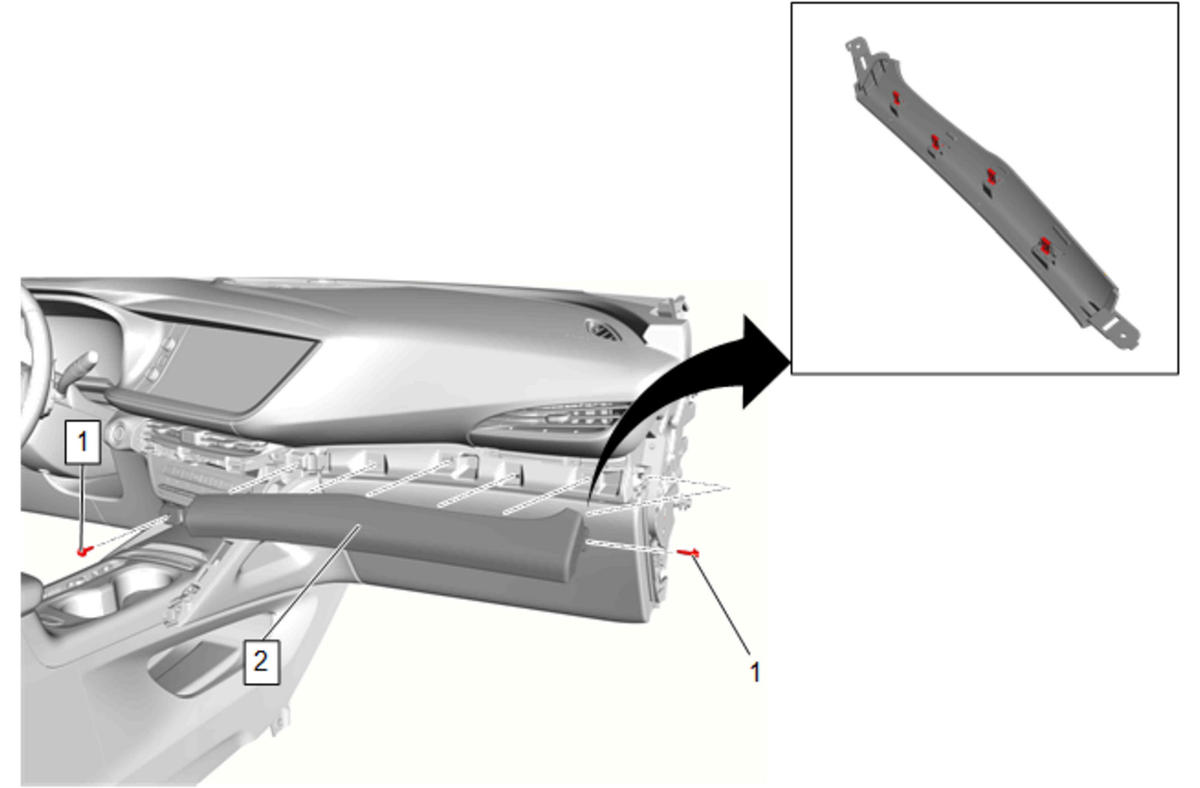

  5. GM5552362Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement - Right Side

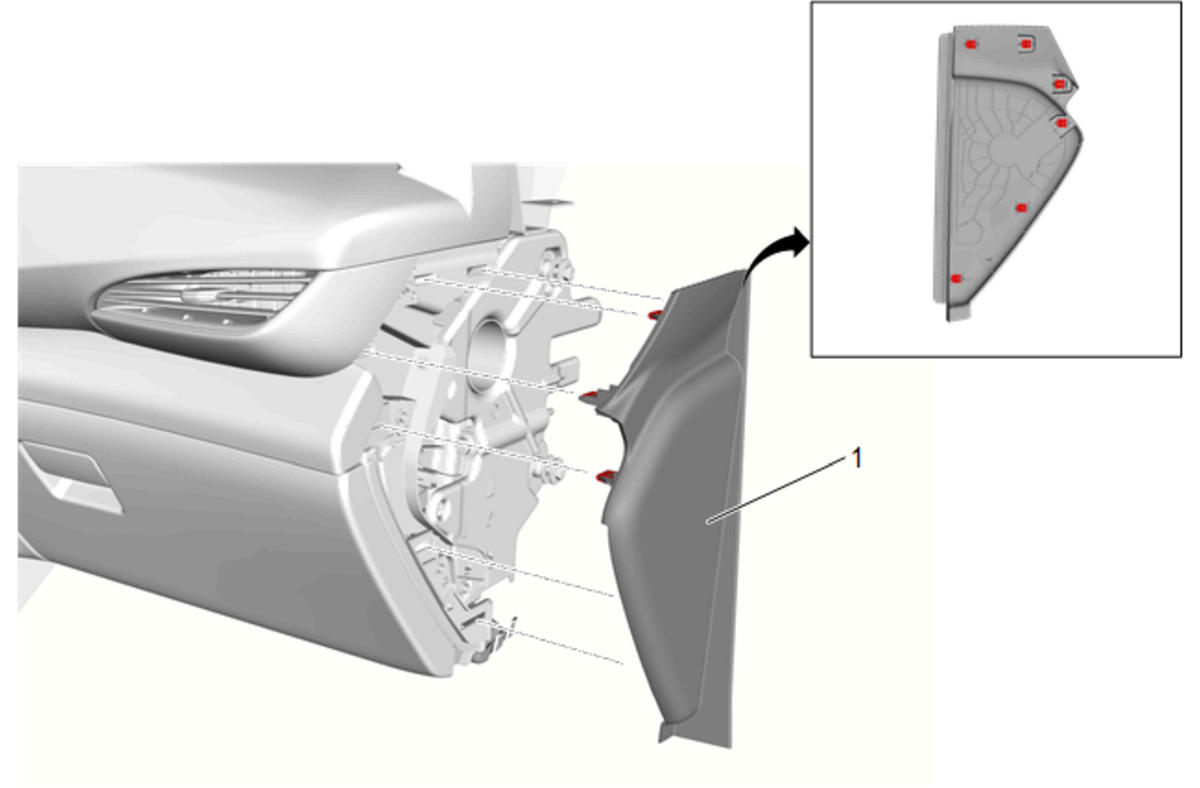

  6. GM5541511Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Right Side

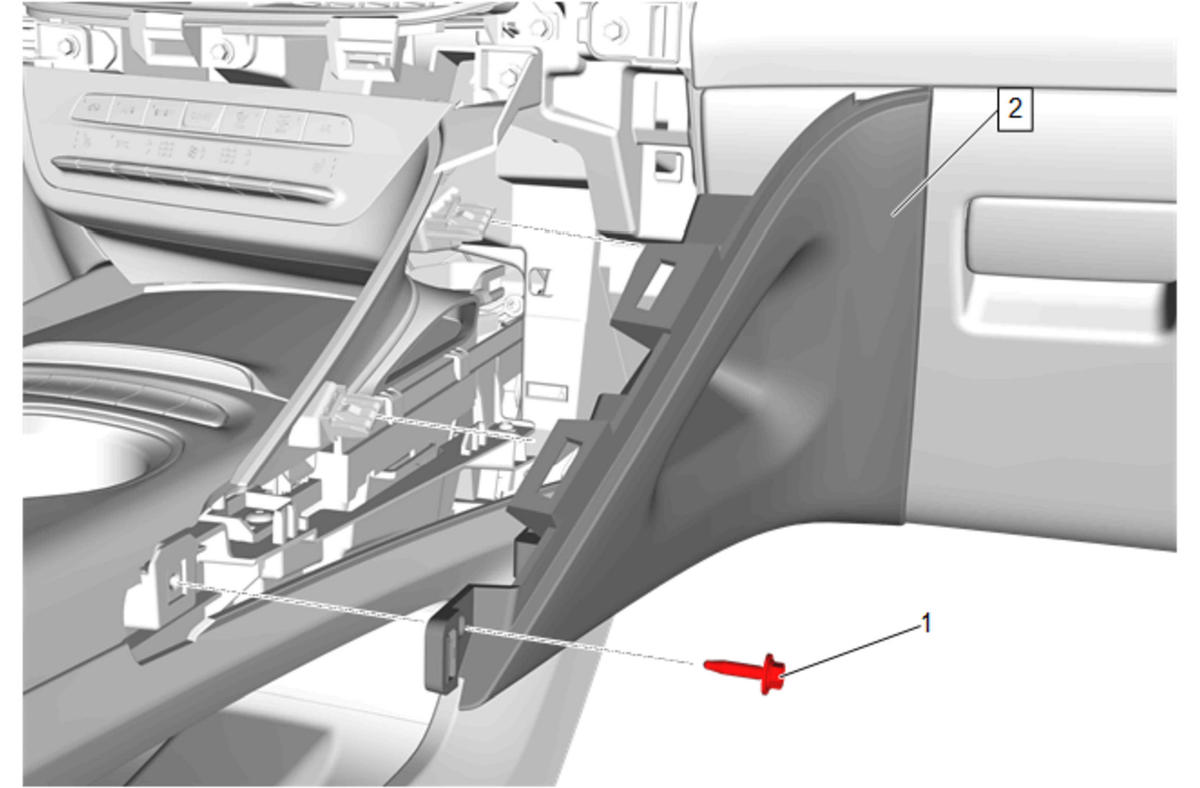

  7. GM5549334Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel- Right Side (2) - Install - Instrument Panel Lower Center Trim Panel Replacement - Right Side

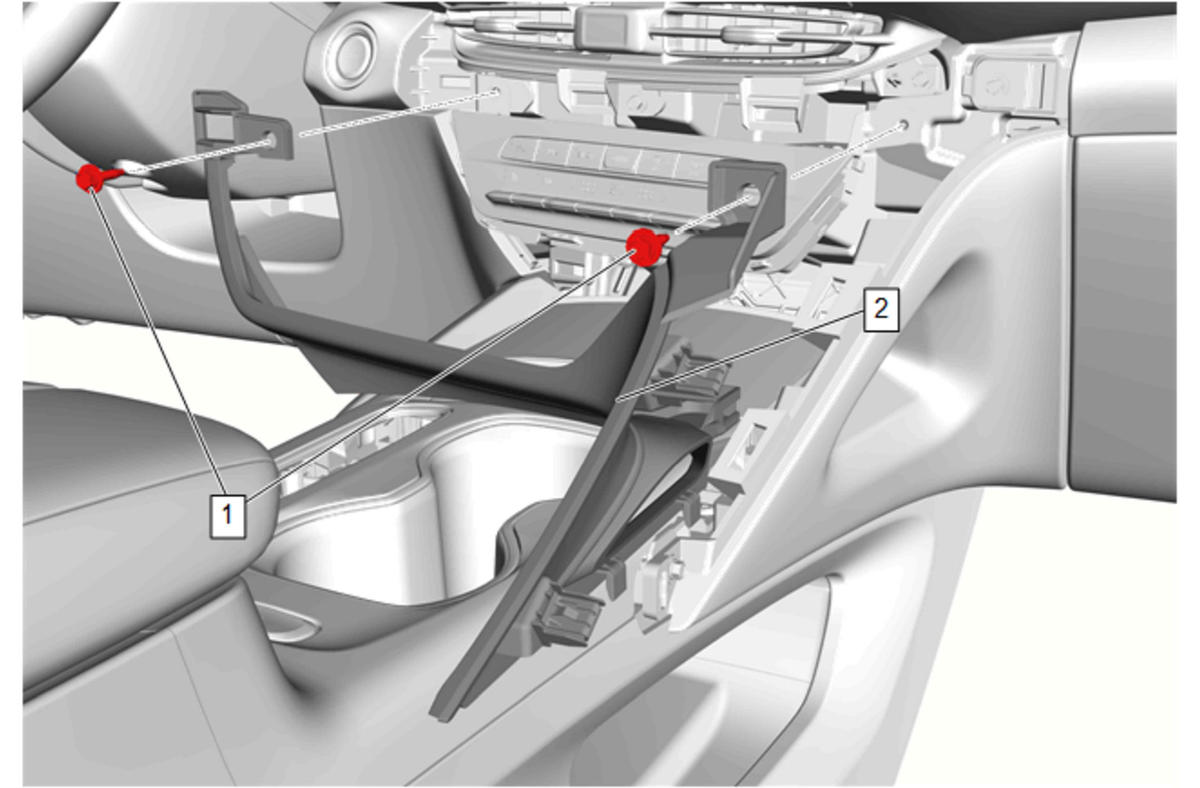

  8. GM5549341Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel- Left Side (2) - Install - Instrument Panel Lower Center Trim Panel Replacement - Left Side

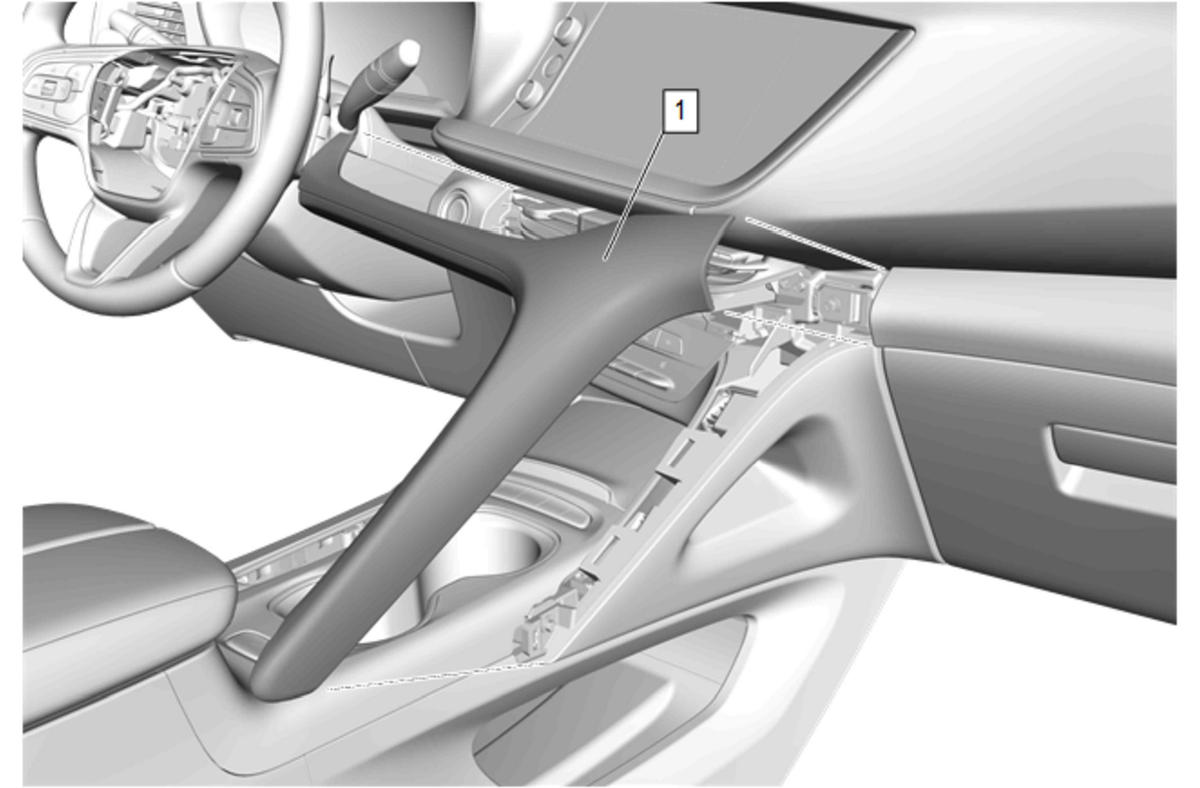

  9. GM5549333Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad- Right Side (1) - Install - Instrument Panel Center Trim Pad Replacement - Right Side
