Front Seat Adjuster Memory Switch Replacement

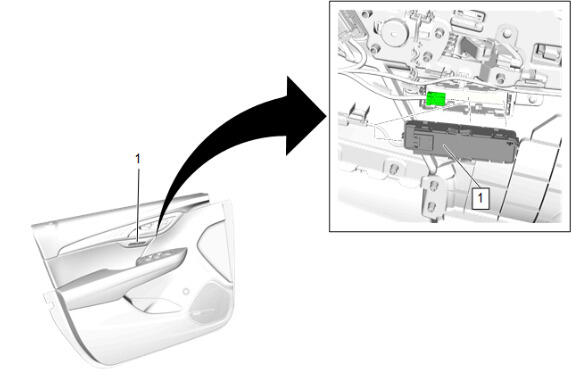

GM5574051Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Seat Adjuster Memory Switch

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs.
