Front Side Door Window Channel Front Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

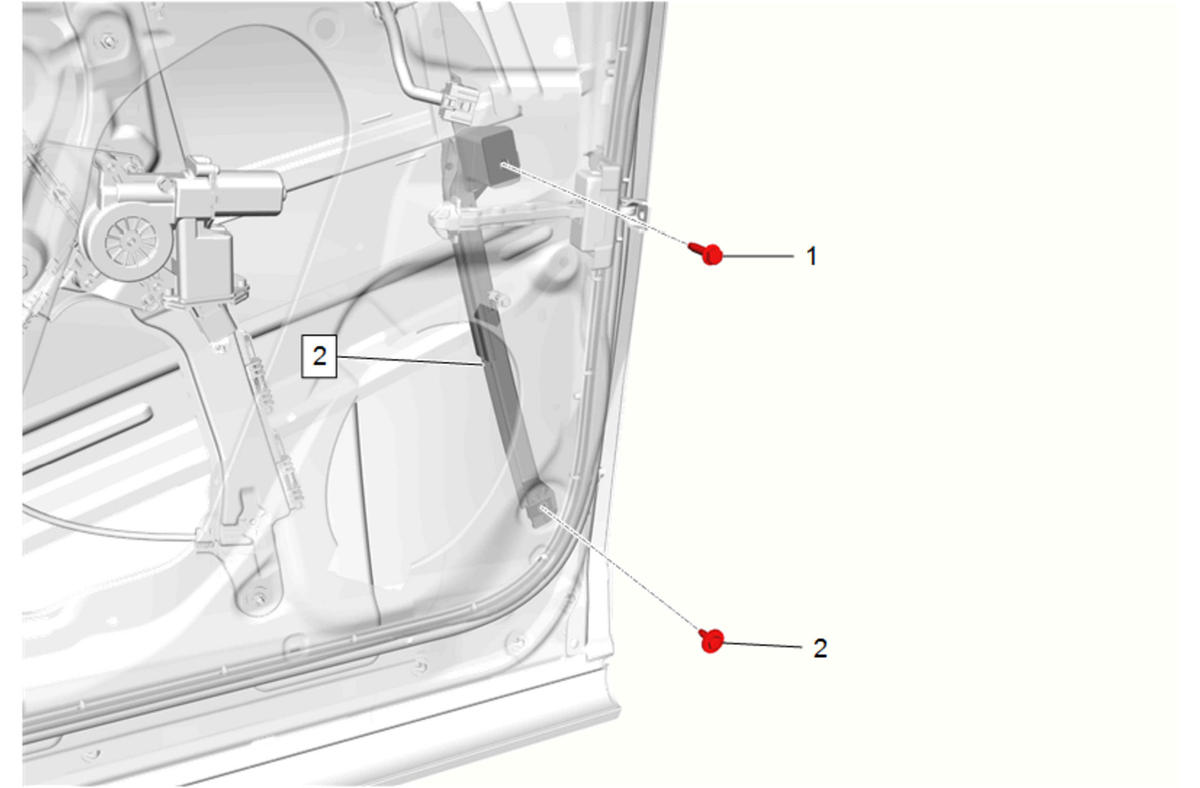

Callout	Component Name
WARNING: Glass and Sheet Metal Handling Warning WARNING: Express Window Down Warning Preliminary Procedures Radio Front Side Door Speaker Replacement Front Side Door Wiring Harness - Reposition
1	Front Side Door Window Channel Retainer Front Bolt CAUTION: Fastener Caution Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Retainer Front Bolt Tighten 11 N.m (97 lb in)
3	Front Side Door Window Channel Front Retainer Procedure Inspect the door window for proper operation before installing the door trim panel.
