Installation Procedure

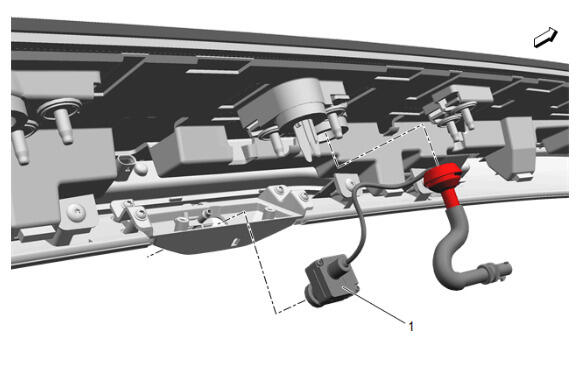

  1. GM5613589Courtesy of GENERAL MOTORS COMPANY

    Video Display Inside Rearview Mirror Camera (1) @ Rear End Spoiler - Install

  2. GM5613585Courtesy of GENERAL MOTORS COMPANY

    Video Display Inside Rearview Mirror Camera Bracket (2) - Install

  3. Video Display Inside Rearview Mirror Camera Bracket Bolt (1) - Install and tighten [2x] 1.1 N.m (10 lb in)
  4. GM5591519Courtesy of GENERAL MOTORS COMPANY

    Rear End Spoiler (3) - Install - Rear End Spoiler Replacement
