Front View Driver Information Camera Bracket Replacement

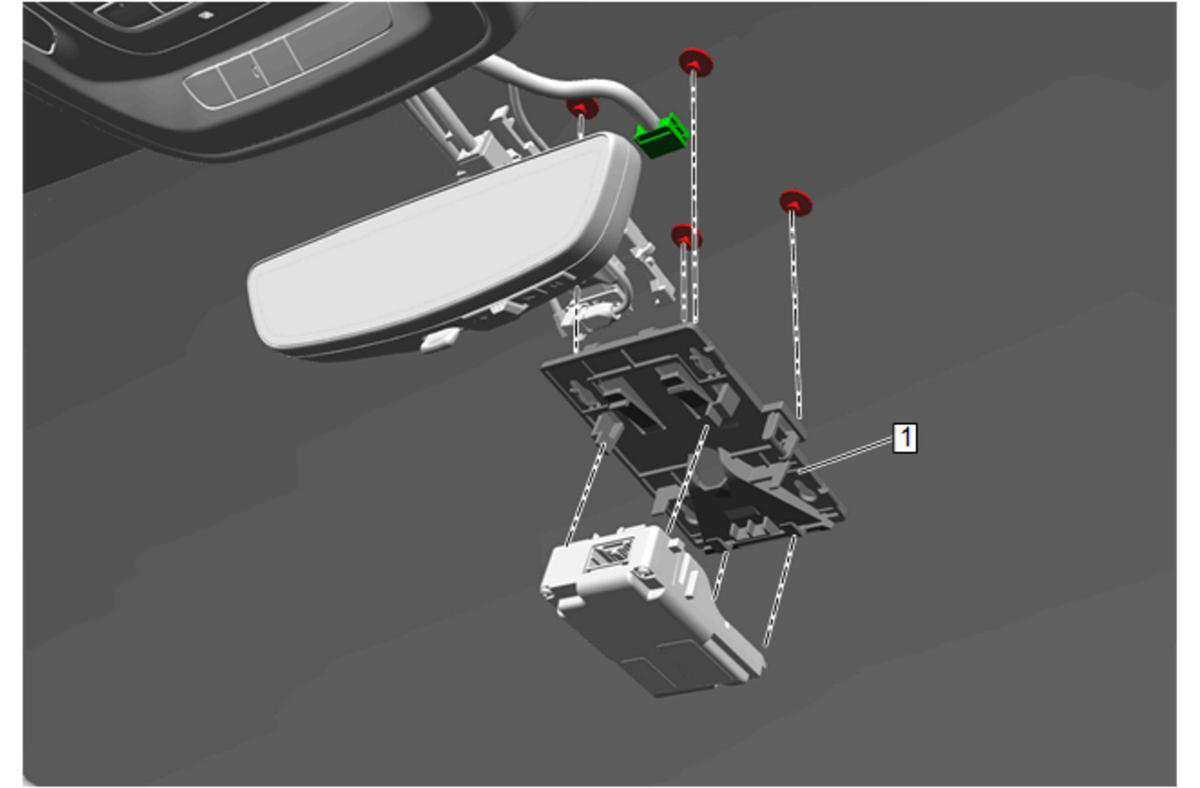

GM5589815

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UHX)

1

Front View Driver Information Camera Bracket

Procedure

Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield.
Transfer components as necessary.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
