Rearview Driver Information Camera Replacement

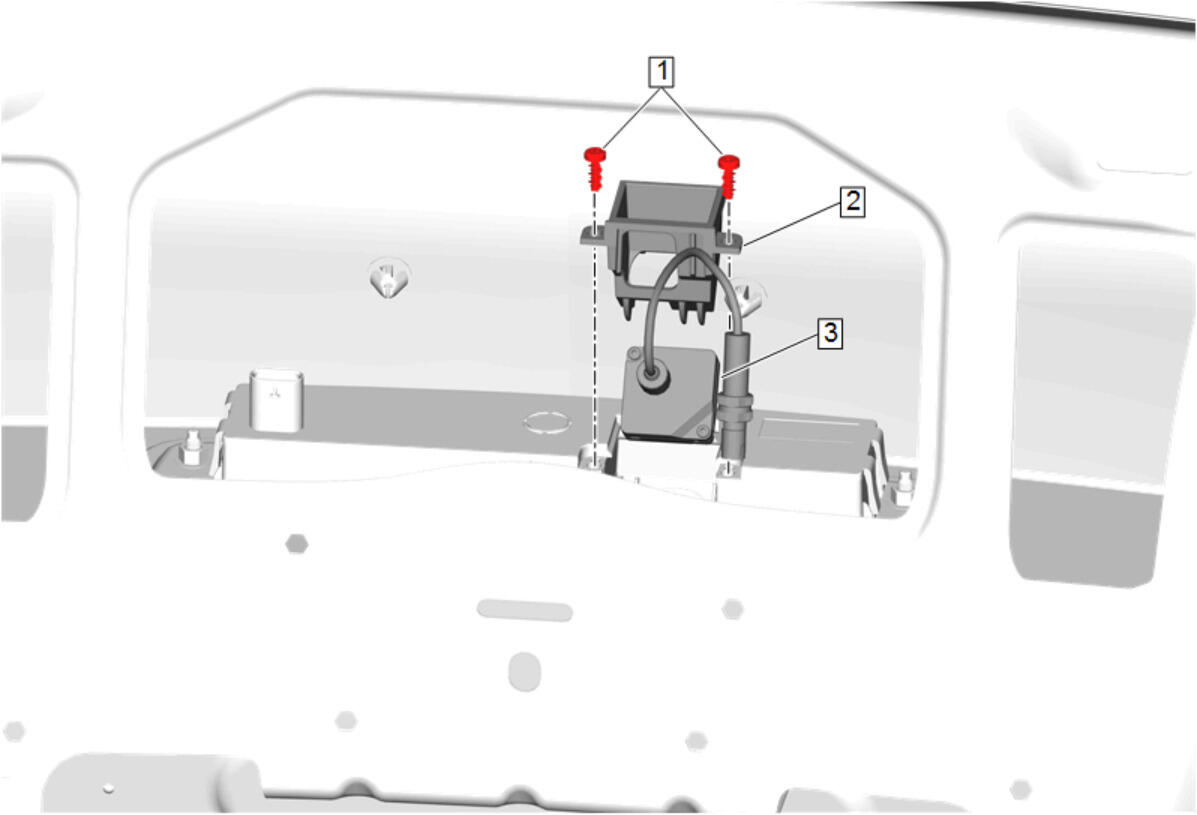

| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement |
|
| 1 | Rearview Driver Information Camera Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Rearview Driver Information Camera Bracket |
| 3 | Rearview Driver Information Camera
NOTE:
This kit is to be used for antenna coax cables ONLY. It should not be used for rear view camera coax cable as connector ends are not sealed and could cause corrosion. Procedure After installation, perform the video processing control module calibration. Video Processing Control Module Calibration |
