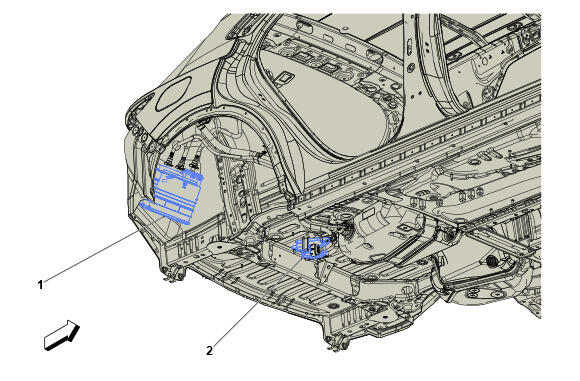

Right Rear Wheel Well Components

GM5639188Courtesy of GENERAL MOTORS COMPANY
Right Rear Wheel Well Components

Component Name Callout
Q13 Evaporative Emission Canister Vent Solenoid Valve Q13 Evaporative Emission Canister Vent Solenoid Valve 1
K111 Fuel Pump Power Control Module K111 Fuel Pump Power Control Module 2
