Right Rear Door Trim Components

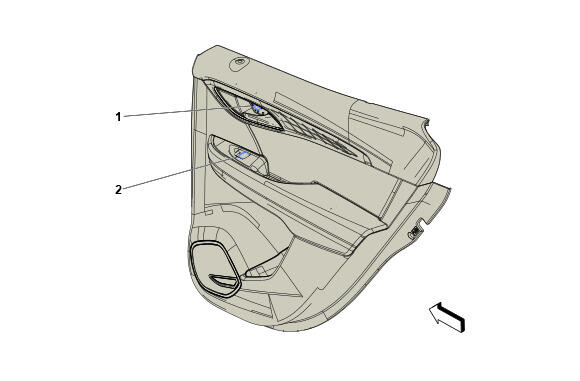

GM5639168Courtesy of GENERAL MOTORS COMPANY
Right Rear Door Trim Components

Component Name Callout
E63RR Rear Side Door Inside Handle Illumination Lamp - Right (C93) E63RR Rear Side Door Inside Handle Illumination Lamp - Right (C93) 1
S79RR Rear Side Door Window Switch - Right S79RR Rear Side Door Window Switch - Right 2
