Fuel Tank Vent Pipe Replacement (Module to Filler Pipe, AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement (AWD)

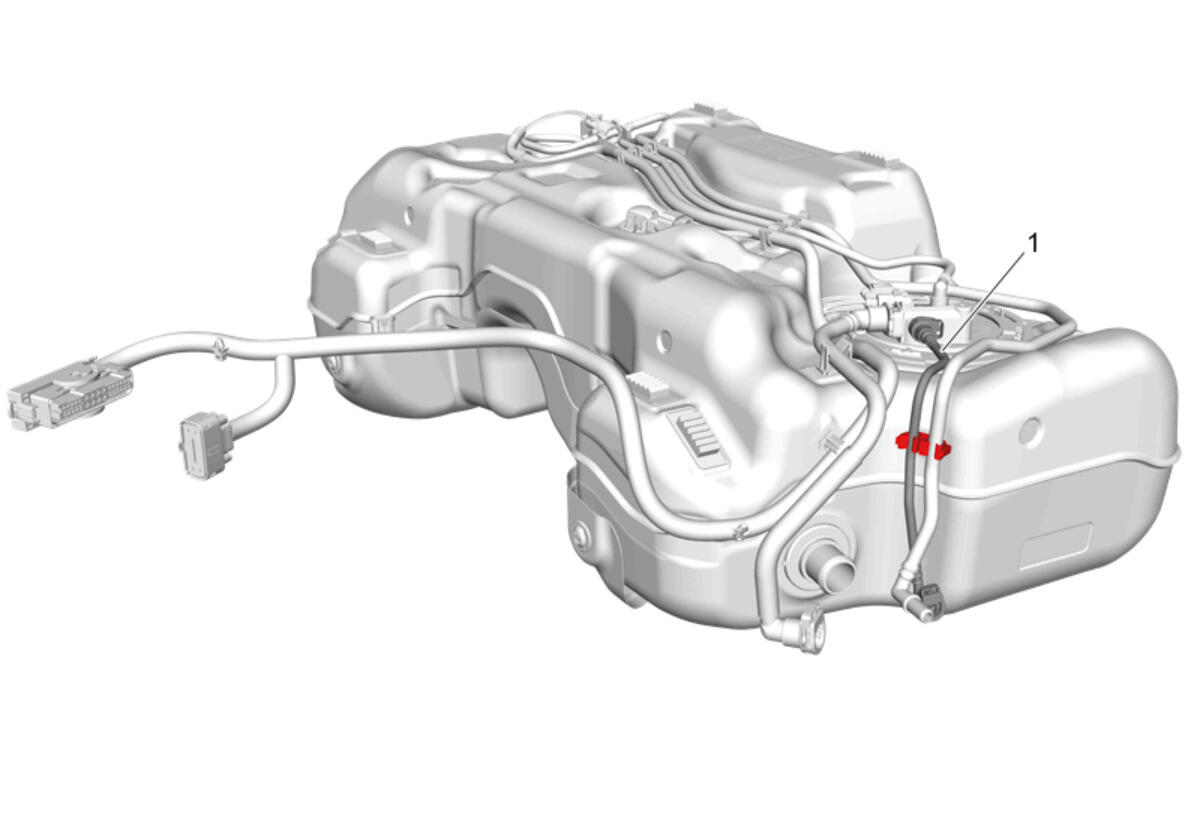

1	Fuel Tank Vent Pipe Procedure  Disconnect the fuel tank vent pipe and remove from retainer. Plastic Collar Quick Connect Fitting Service
