Fuel Pump Power Control Module Replacement (FWD)

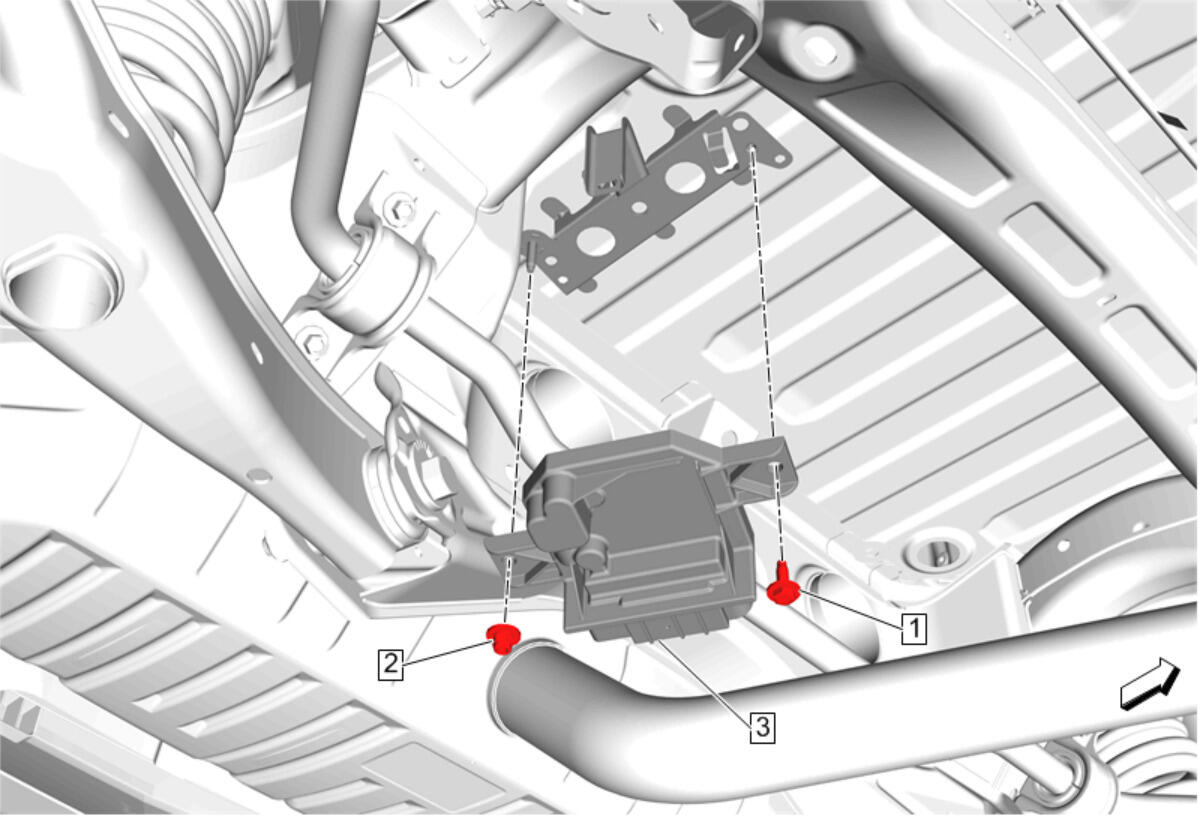

GM5055929Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Fuel Pump Power Control Module Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module Nut
Tighten
9 N.m (80 lb in)
3 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration
