Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Perform the wheel alignment measurement and adjust all other settings prior to setting front toe. Wheel Alignment Measurement
Courtesy of GENERAL MOTORS COMPANY

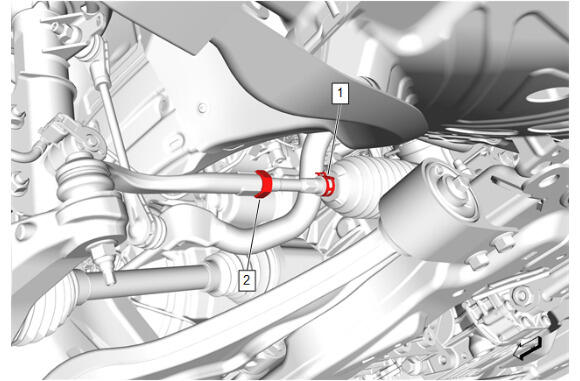

Steering Gear Boot Clamp (1) - Disengage
Steering Linkage Inner Tie Rod Nut (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

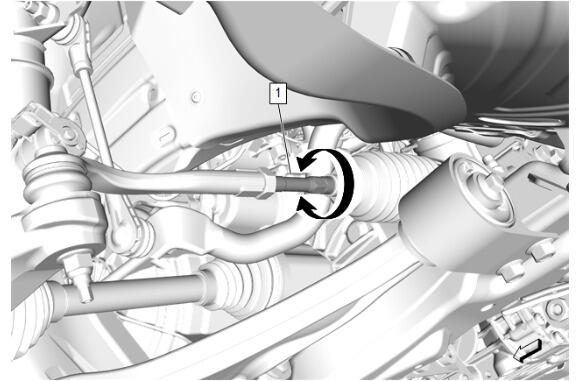

Rotate the inner tie rod (1) as necessary to achieve the required front toe specification setting. Wheel Alignment Specifications
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Steering Linkage Inner Tie Rod Nut (2) - Tighten 75 N.m (55 lb ft)
Steering Gear Boot Clamp (1) - Engage
Check the front toe setting after tightening.
Re-adjust the front toe setting if necessary.
Center the steering wheel position sensor. Steering Wheel Angle Sensor Centering
