Power Transfer Unit Shift Actuator Replacement
WARNING: This page is about a different variant/trim than selected.

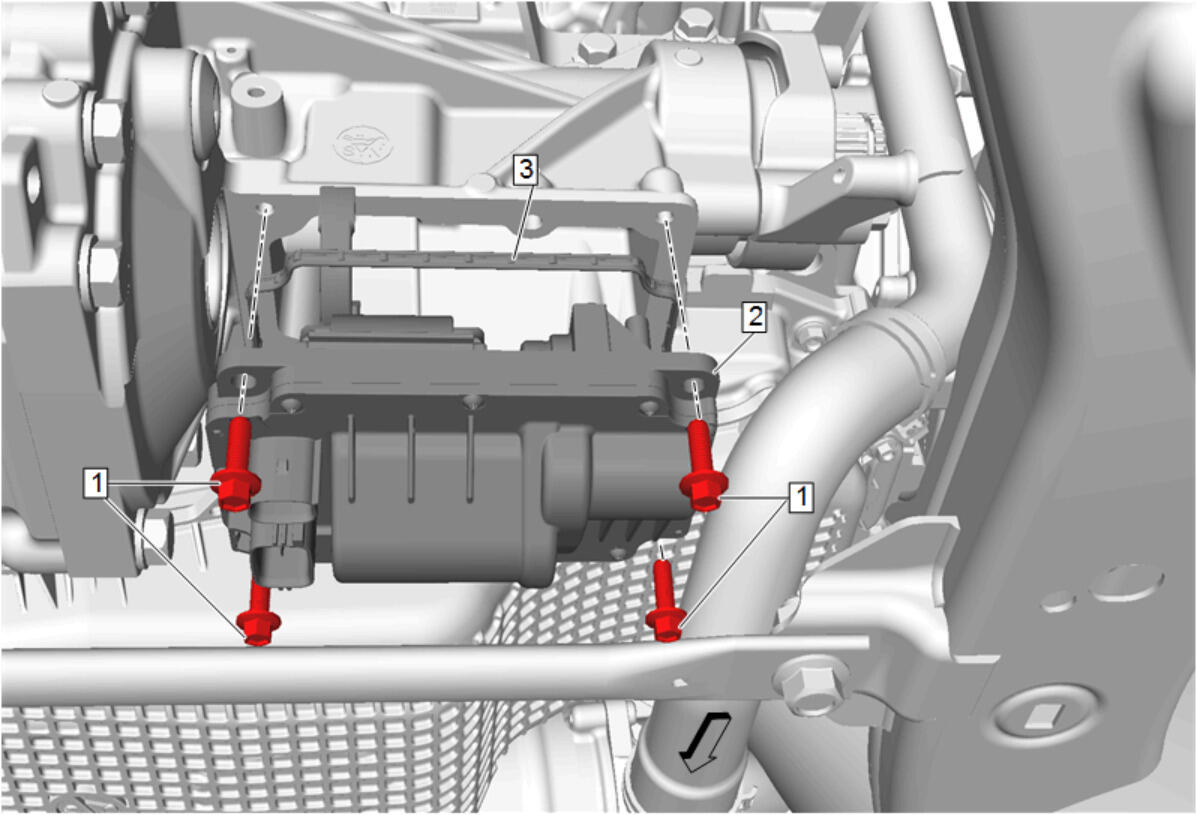

| Callout | Component Name |
|---|---|
| Preliminary Procedure Power Transfer Unit Heat Shield Replacement |
|
| 1 | Power Transfer Unit Shift Actuator Bolt [4x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Power Transfer Unit Shift Actuator Procedure Disconnect the electrical connectors. |
| 3 | Power Transfer Unit Shift Actuator Seal Procedure Inspect and replace as necessary. |
