Door Lock Switch Replacement - Driver Side

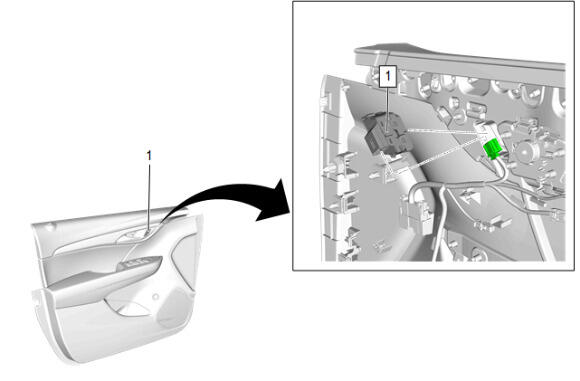

GM5574047Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Door Lock Switch - Driver Side

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs.
