Instrument Panel Switch Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

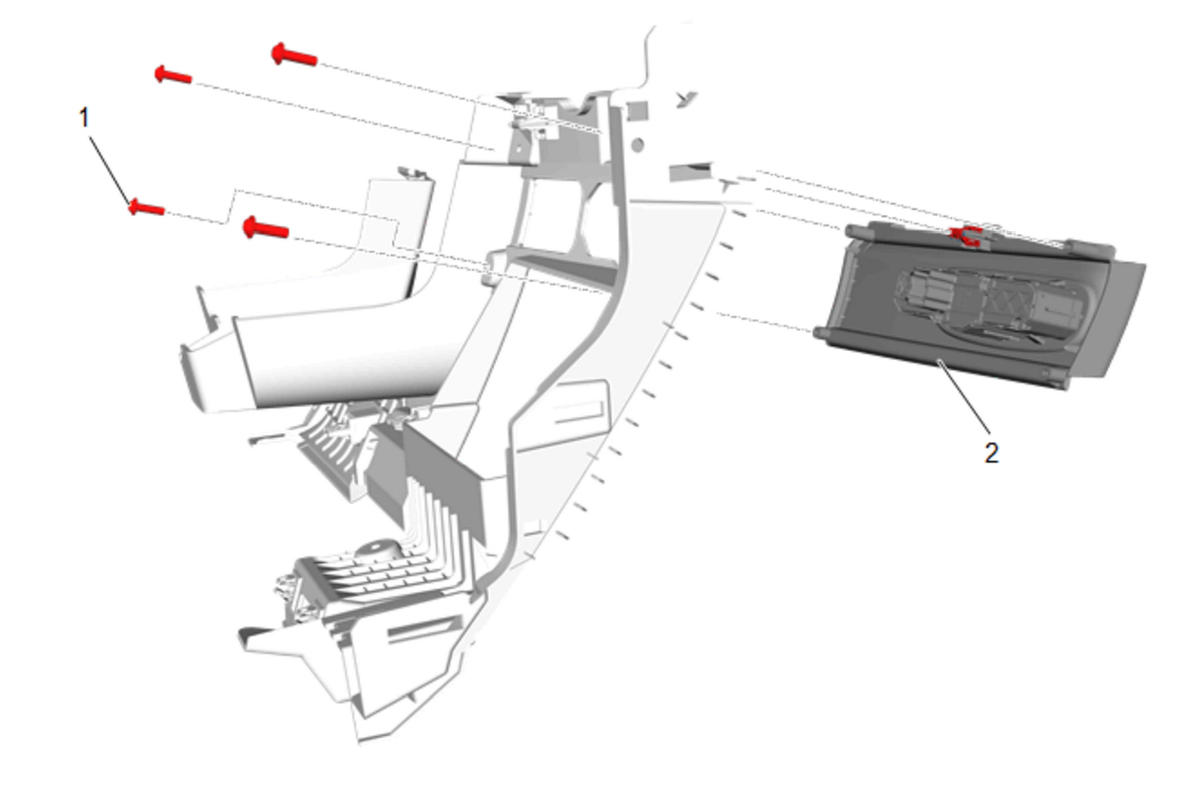

Callout
Component Name
Preliminary Procedures
Instrument Panel Outer Trim Cover Replacement - Left Side
Instrument Panel Fuse Block Access Hole Cover Replacement
Instrument Panel Trim Pad Replacement - Left Side
Instrument Panel Knee Bolster Replacement
1
Instrument Panel Switch Trim Plate Bolt [4x]
CAUTION:
Fastener Caution
Tighten
1.1 N.m (10 lb in)
2
Instrument Panel Switch Trim Plate
Procedure
Use a suitable tool.
