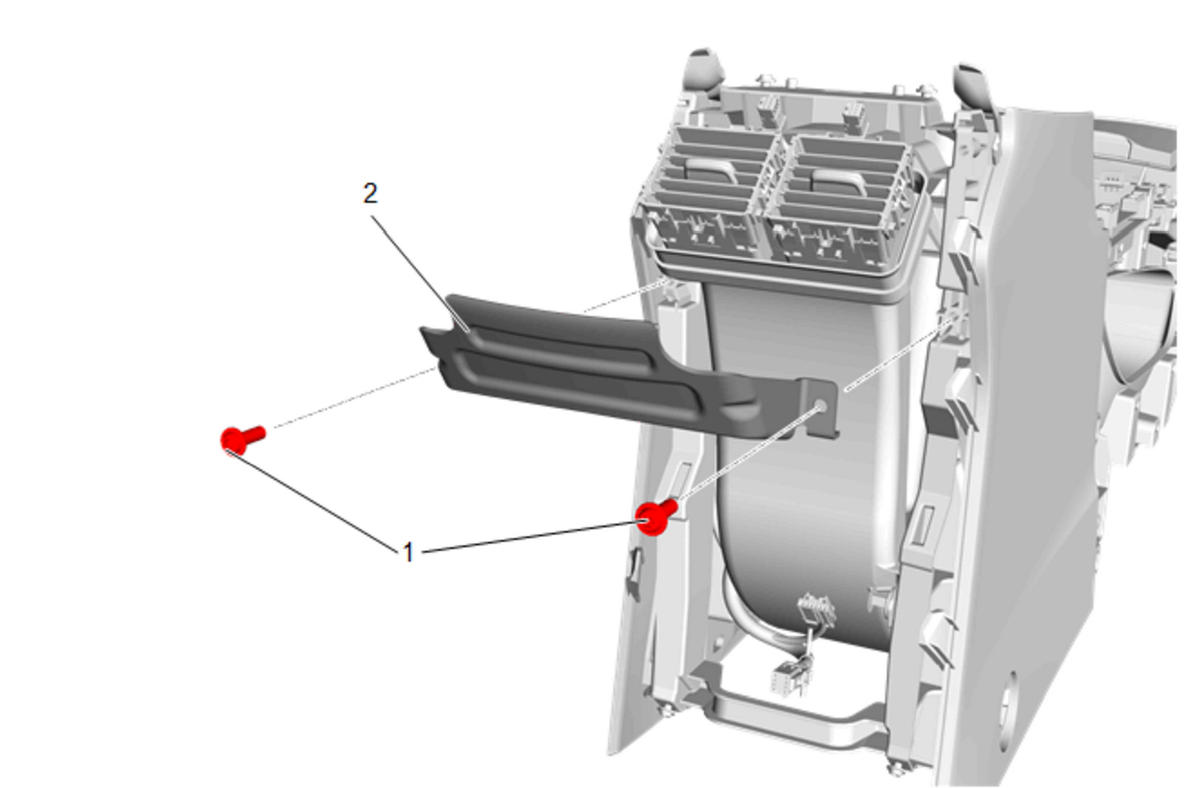

Front Floor Console Intermediate Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Replacement Front Floor Console Compartment Replacement Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Rear Bracket Bolt [2x] CAUTION: Fastener Caution Tighten 3.8 N.m (34 lb in)
2	Front Floor Console Intermediate Bracket

Callout

Component Name

Preliminary Procedures

Front Floor Console Rear Bracket Bolt [2x]

CAUTION:

Tighten
3.8 N.m (34 lb in)

Front Floor Console Intermediate Bracket
