X50D Fuse Block - Battery X9

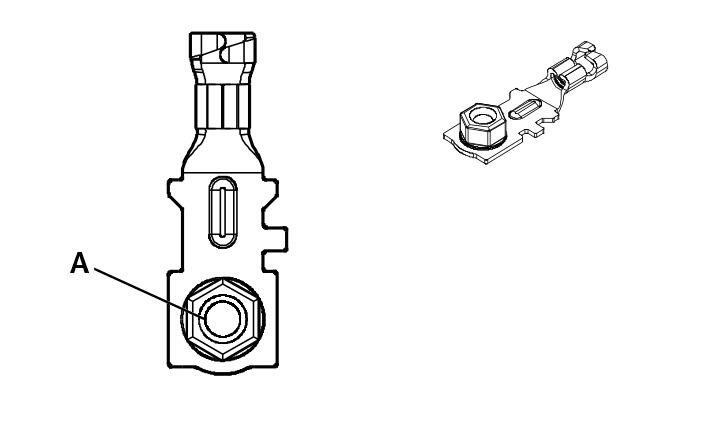

GM5255648Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 31570
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1 - Way Ring Terminal
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required No Tool Required No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
A 6 RD / BN 202 Battery Positive Voltage I F48/KI6/V92
