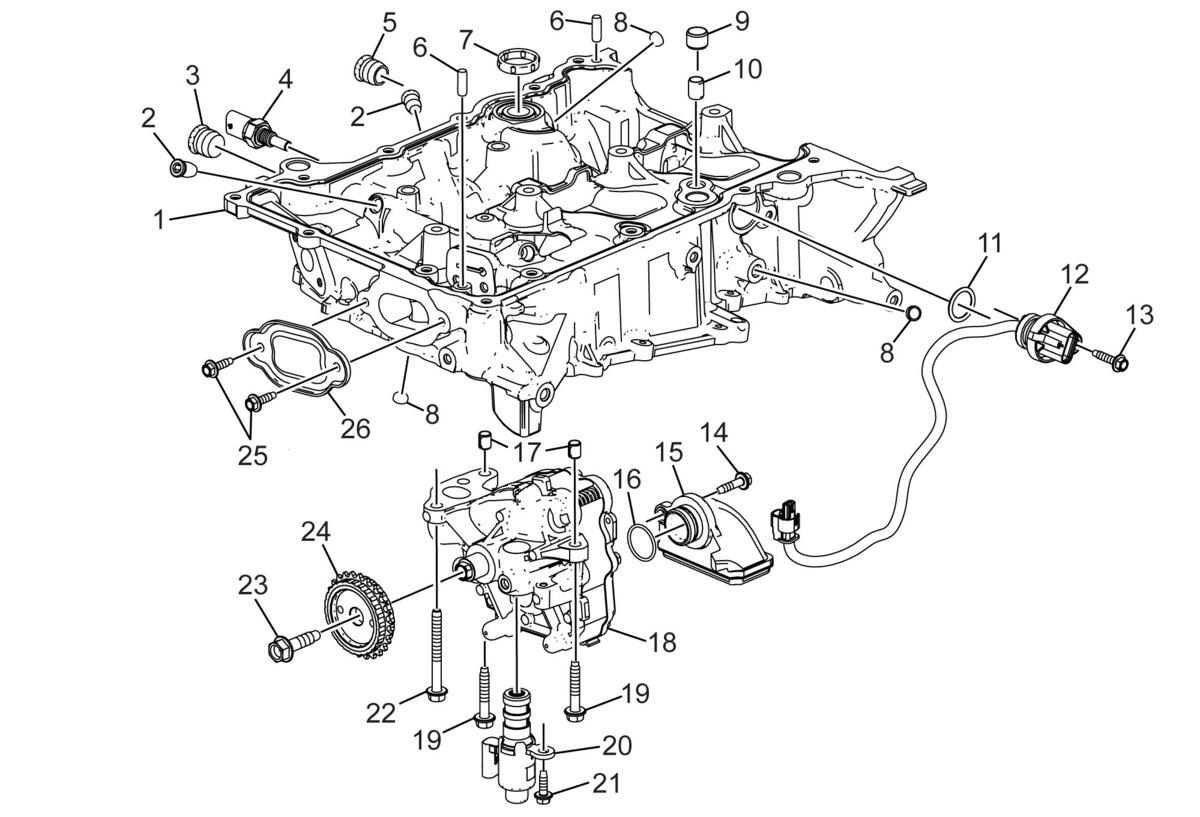

| 1 |
Engine Block Lower Structural Extension |
| 2 |
Engine Block Lower Structural Extension Oil Gallery Plug |
| 3 |
Engine Block Lower Structural Extension Oil Gallery Plug |
| 4 |
Engine Oil Temperature Sensor |
| 5 |
Engine Block Lower Structural Extension Core Hole Plug |
| 6 |
Balancer Shaft Housing Locating Pin [2x] |
| 7 |
Oil Pan High Pressure Port Seal |
| 8 |
Engine Block Lower Structural Extension Oil Gallery Plug |
| 9 |
Flywheel Housing Locating Pin |
| 10 |
Engine Block Lower Structural Extension Pin |
| 11 |
Engine Oil Level Indicator Switch O-Ring Seal |
| 12 |
Oil Pump Flow Control Solenoid Valve Wire |
| 13 |
Oil Pump Flow Control Solenoid Valve Harness Bolt |
| 14 |
Oil Pump Suction Pipe Bolt |
| 15 |
Oil Pump Suction Pipe |
| 16 |
Oil Pump Suction Pipe Seal |
| 17 |
Oil Pump Locating Pin [2x] |
| 18 |
Oil Pump |
| 19 |
Oil Pump Bolt [2x] |
| 20 |
Oil Pump Flow Control Solenoid Valve |
| 21 |
Oil Pump Flow Control Solenoid Valve Bolt |
| 22 |
Engine Block Lower Structural Extension Bolt |
| 23 |
Oil Pump Sprocket Bolt |
| 24 |
Oil Pump Sprocket |
| 25 |
Timing Chain Tensioner Cover Bolt |
| 26 |
Timing Chain Tensioner Cover |
