Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

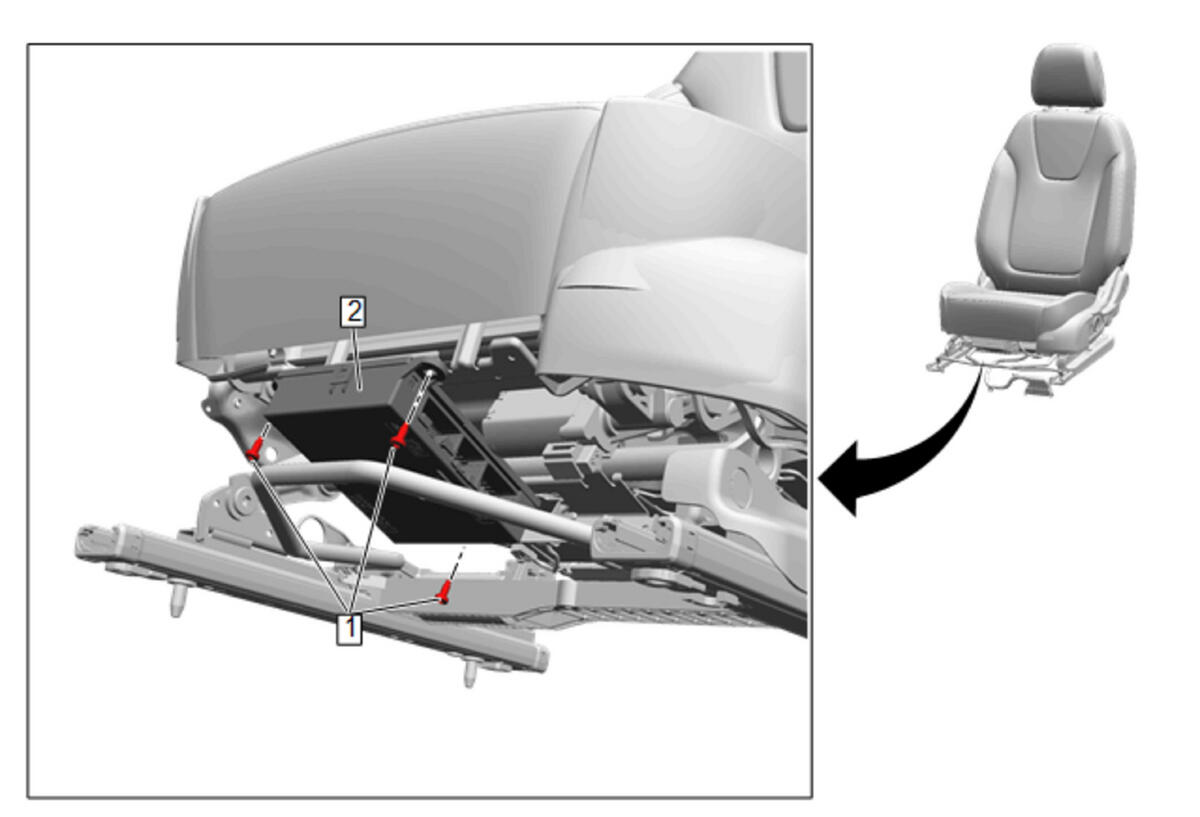

Callout	Component Name
Preliminary Procedure Remove the driver seat. Front Seat Removal and Installation
1	Driver Seat Adjuster Memory Module Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove the driver seat. Front Seat Removal and Installation

Driver Seat Adjuster Memory Module Fastener [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Driver Seat Adjuster Memory Module

Procedure
