Front Side Door Window Channel Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

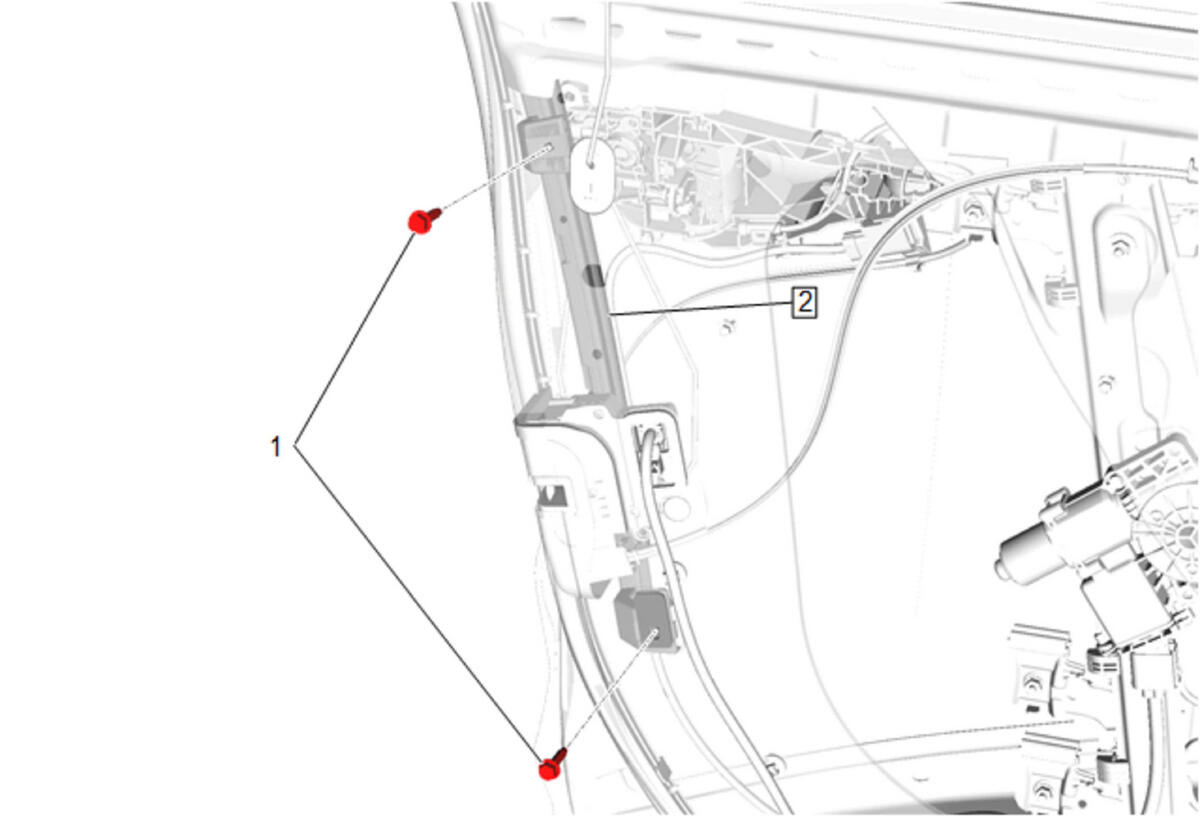

Callout	Component Name
WARNING: Glass and Sheet Metal Handling Warning WARNING: Preliminary Procedures Front Side Door Water Deflector Replacement Front Side Door Wiring Harness - Reposition @ Front Side Door Window Channel Retainer
1	Front Side Door Window Channel Retainer Bolt [2x] CAUTION: Fastener Caution Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Retainer Procedure Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Front Side Door Water Deflector Replacement
Front Side Door Wiring Harness - Reposition @ Front Side Door Window Channel Retainer

Front Side Door Window Channel Retainer Bolt [2x]

CAUTION:

Tighten
11 N.m (97 lb in)

Front Side Door Window Channel Retainer
Procedure
Inspect the door window for proper operation before installing the door trim panel.
