Front Side Door Lock Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

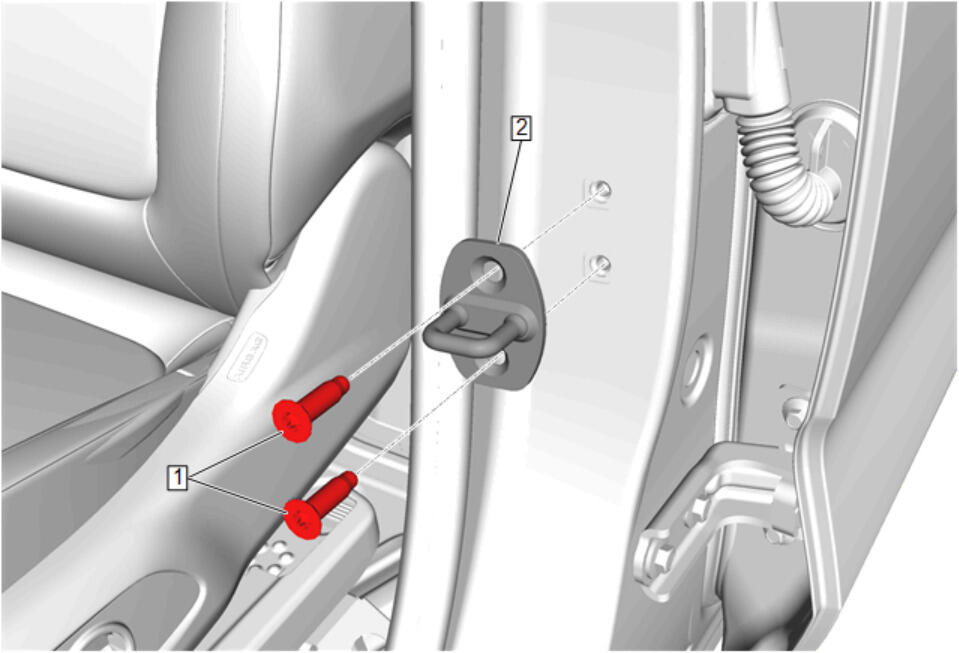

Callout	Component Name
1	Front Side Door Lock Striker Bolt [2x] CAUTION: Fastener Caution Tighten  22 N.m (16 lb ft)
2	Front Side Door Lock Striker Procedure  Adjust the side door lock striker, if necessary. Front Side Door Lock Striker Adjustment
