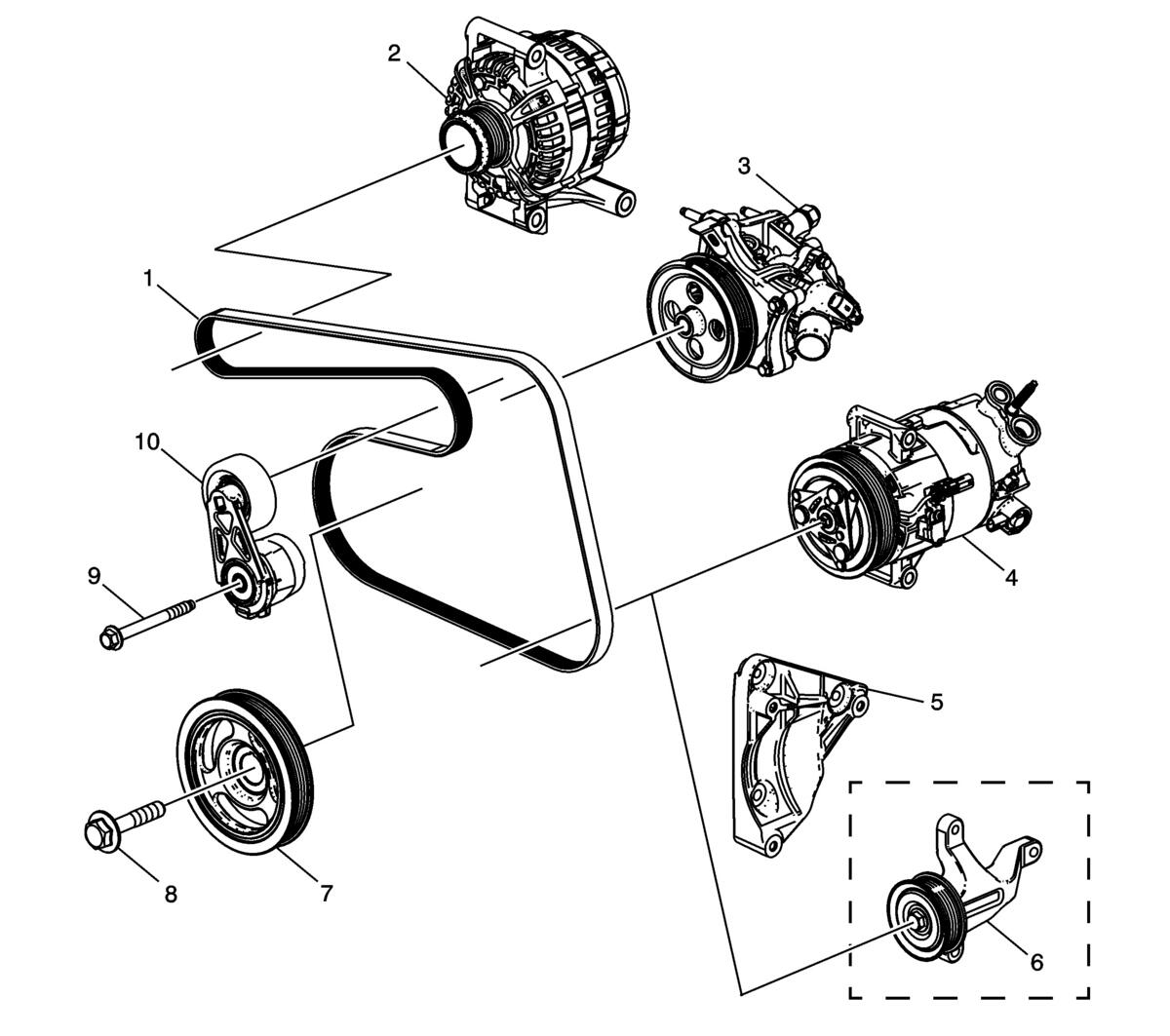

Drive Belt Accessory Components
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Drive Belt |
| 2 |
Generator |
| 3 |
Water Pump |
| 4 |
A/C Compressor |
| 5 |
A/C Compressor Bracket |
| 6 |
Belt Idler Bracket Assembly, Some Models |
| 7 |
Crankshaft Balancer |
| 8 |
Crankshaft Balancer Bolt |
| 9 |
Drive Belt Tensioner Bolt |
| 10 |
Drive Belt Tensioner |
