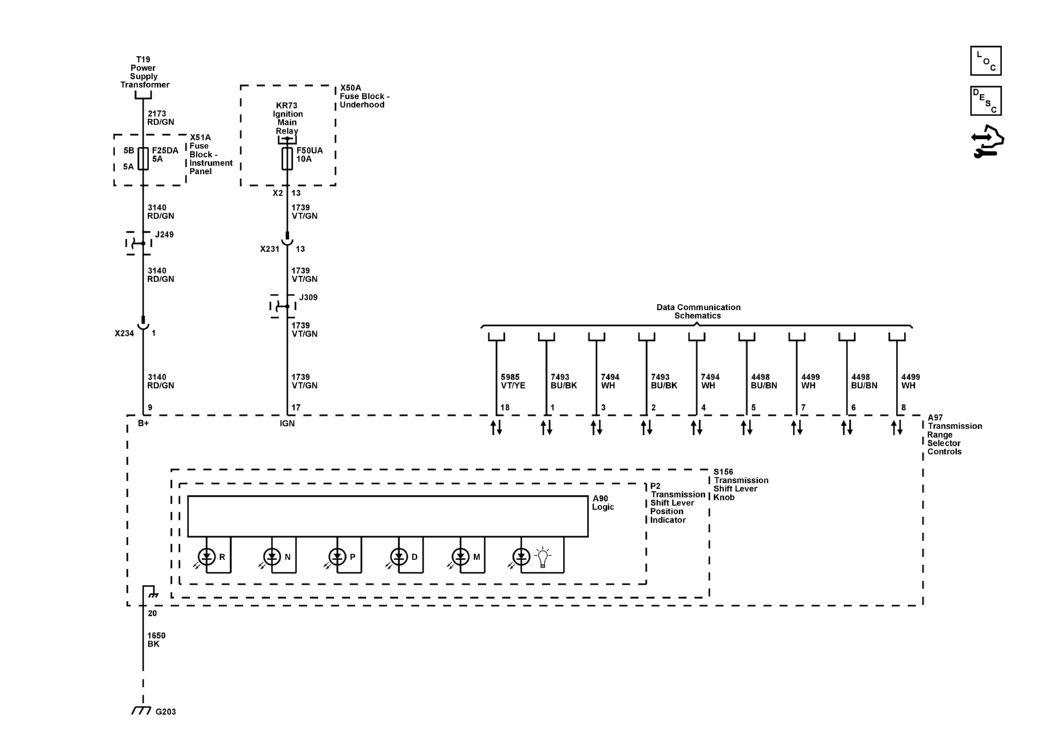

Electronic Shift Controls - Power, Ground, and Serial Data

GM5726935

Courtesy of GENERAL MOTORS COMPANY
