Installation Procedure

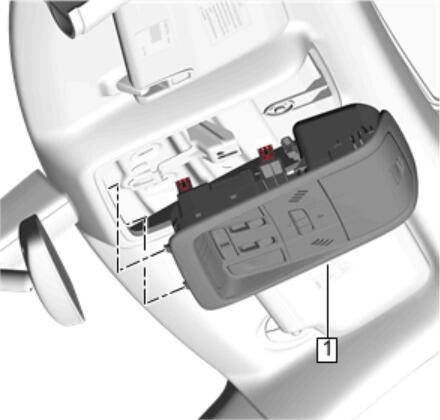

  1. GM4639185Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Insert the forward roof console (1) tabs into the headliner.

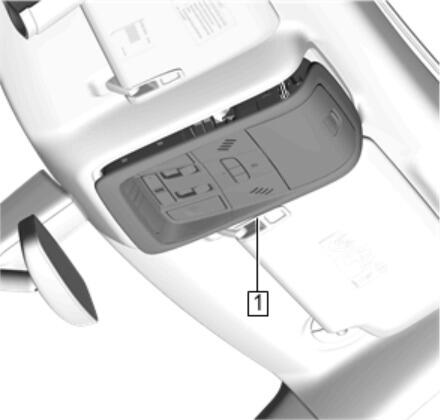

  3. GM4639184Courtesy of GENERAL MOTORS COMPANY

    Install the rear side roof console (1) tabs into the headliner.

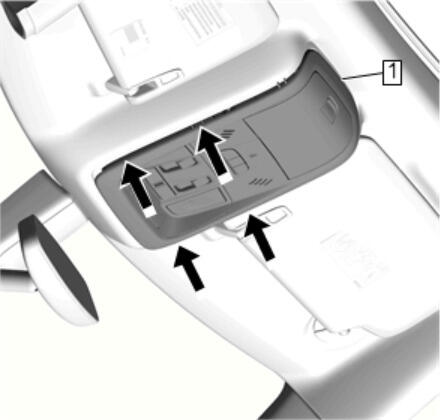

  4. GM4639584Courtesy of GENERAL MOTORS COMPANY

    Roof Console (1) - Install
