Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

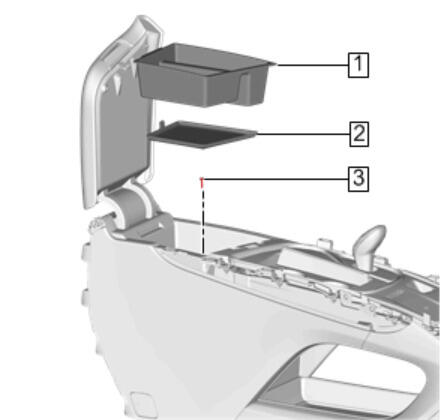

Front Floor Console Bolt (3) - Install and tighten 2.5 N.m (22 lb/in)
Front Floor Console Center Compartment Liner (2) - Install

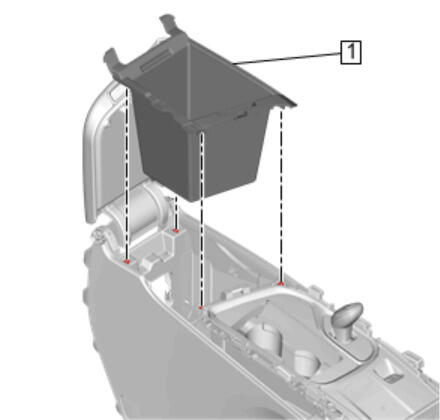

Front Floor Console Armrest Stowage Tray (1) - Install
Courtesy of GENERAL MOTORS COMPANY

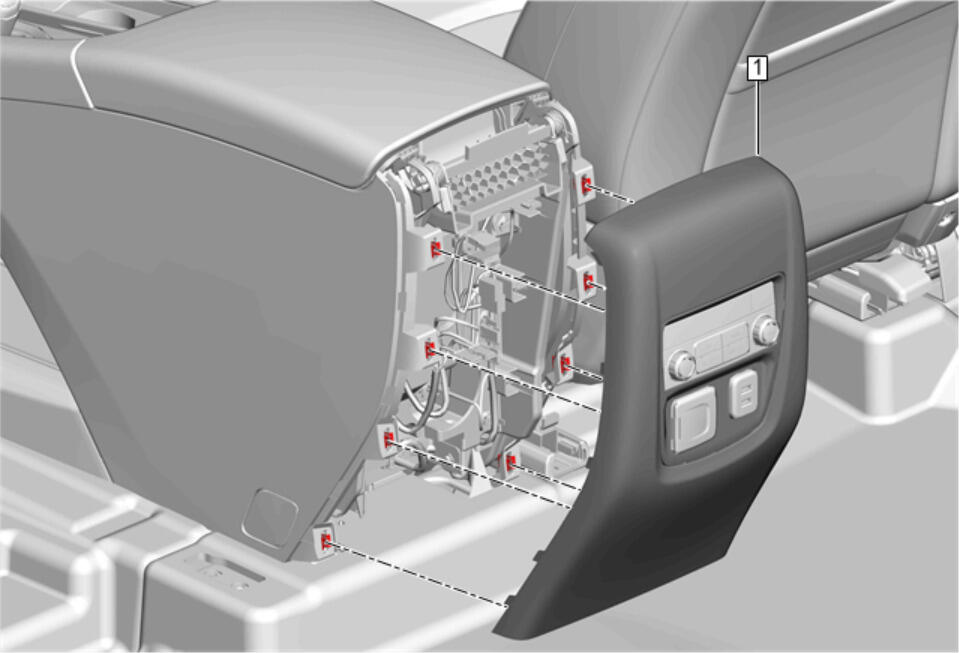

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
