Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

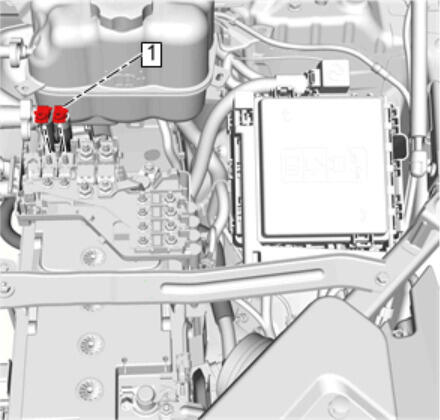

Fuse Block (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Positive Post Connector Nut (1) Install and tighten 9 N.m (80 lb/in).
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the M8 fuse block wiring harness terminal and nut (1) to 16 N.m (12 lb-ft).

[ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the M6 fuse block wiring harness terminal and nut (1) [ 2x ] 9 N.m (80 lb/in).
Courtesy of GENERAL MOTORS COMPANY

Install and tighten the fuse block body wiring harness terminal and nut (1) [ 4x ] 9 N.m (80 lb/in).
Courtesy of GENERAL MOTORS COMPANY

Body Wiring Harness Connector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Fuse Block Cover (1) - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
