Home >> Buick >> 2021 >> Enclave Preferred >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

Defogger Wiring Schematics: Defogger

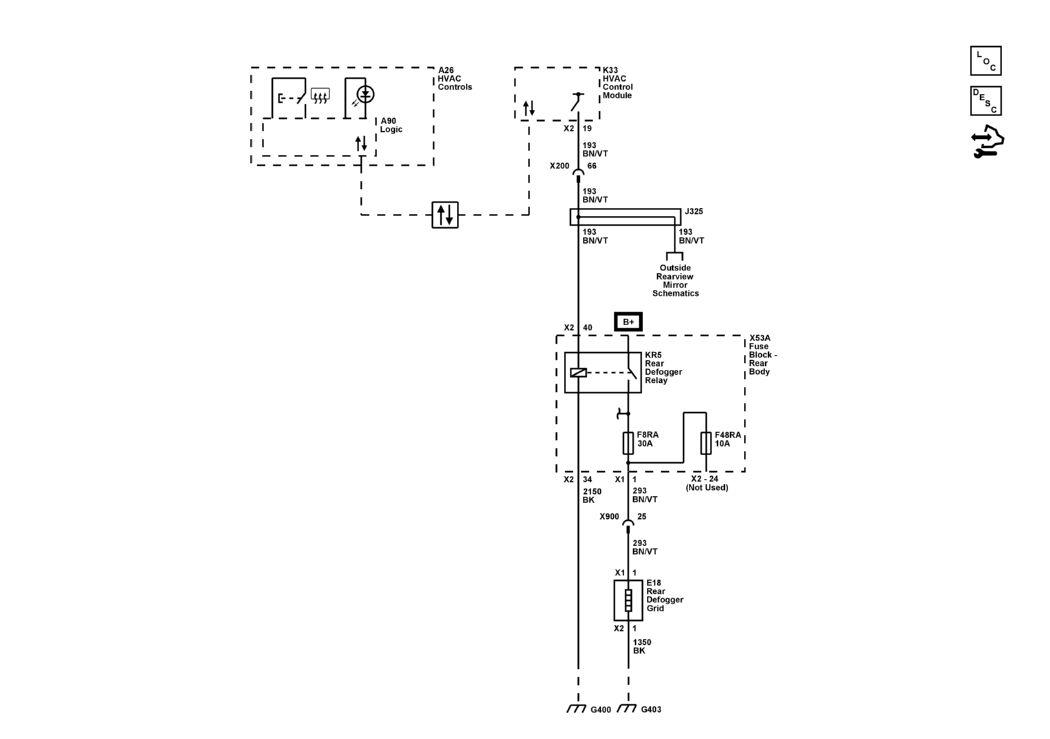

Fig 1: Defogger

GM5726744

Courtesy of GENERAL MOTORS COMPANY
