Installation Procedure

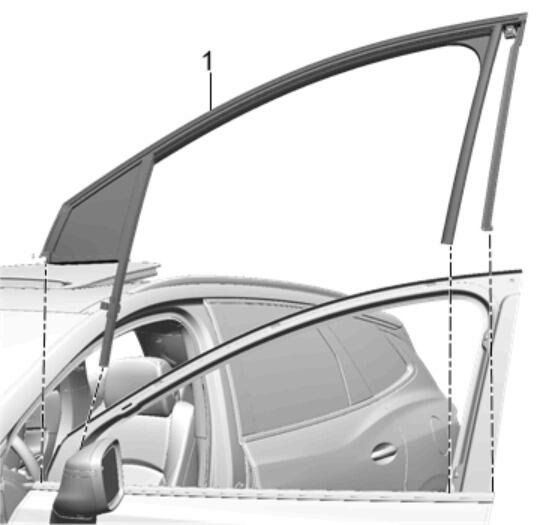

  1. GM4791302Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip (1) - Install

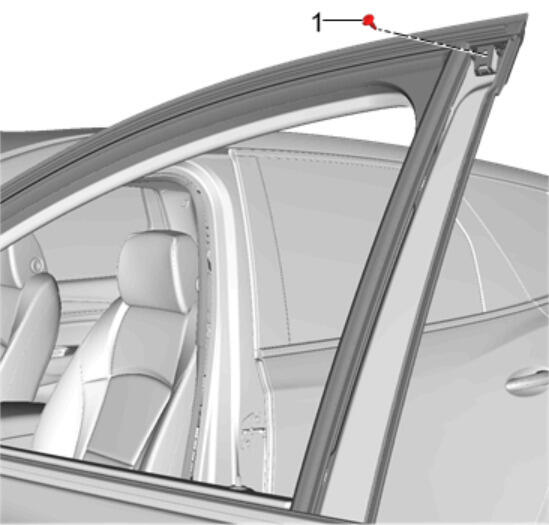

  2. GM4791295Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Side Door Window Weatherstrip Bolt (1) - Install and tighten 2.5 N.m (22 lb/in)

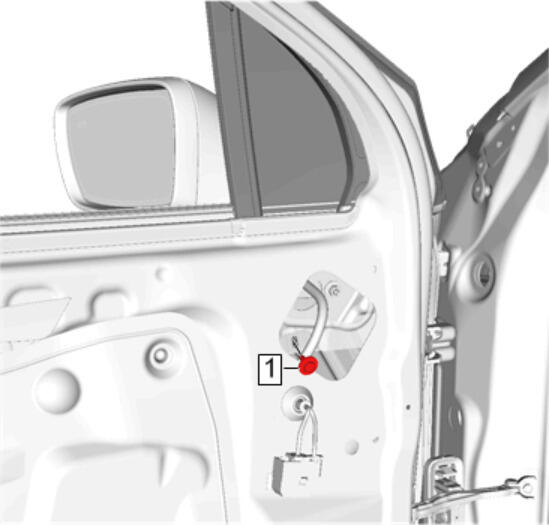

  3. GM4791299Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Inner Upper Screw (1) - Install and tighten 11 N.m (97 lb/in)

  4. GM4786627Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector - Upper (1) - Install - Front Side Door Water Deflector Replacement

  5. GM4794047Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window (2) - Install - Front Side Door Window Replacement

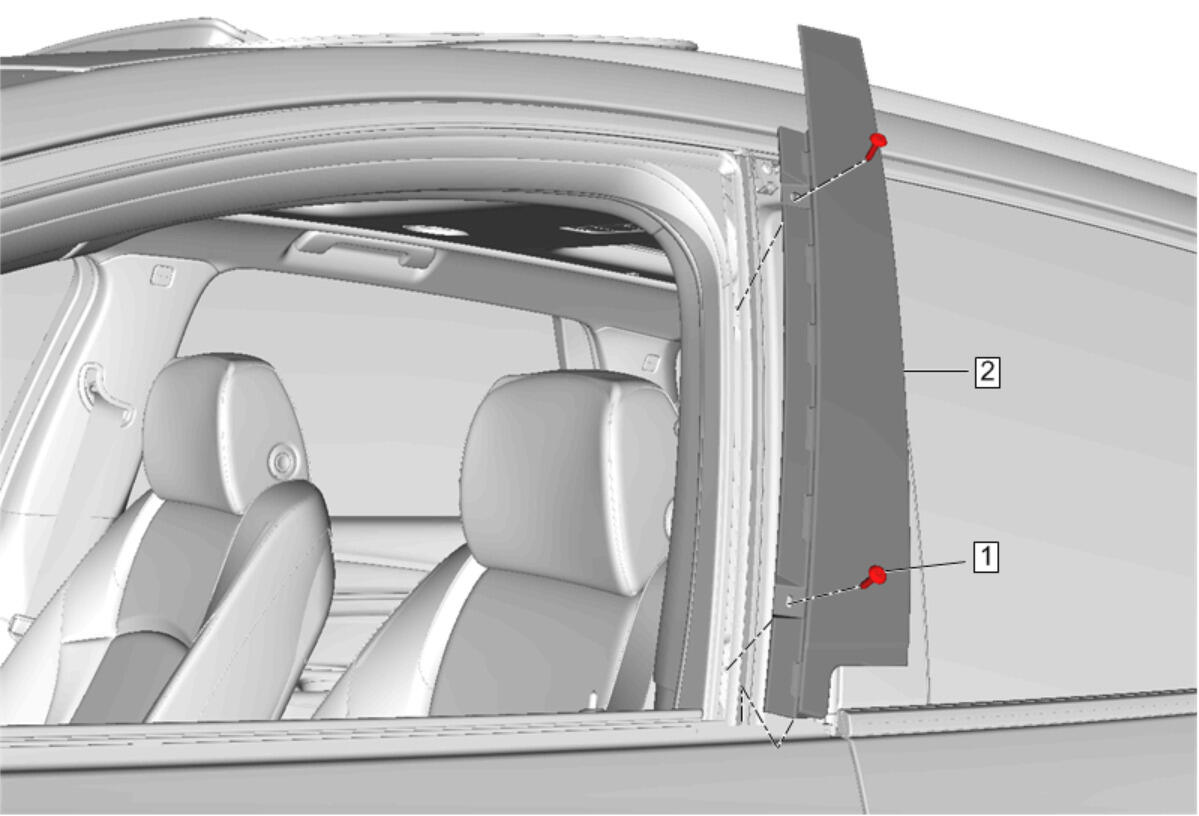

  6. GM4793901Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (2) - Install - Front Side Door Window Frame Rear Applique Replacement

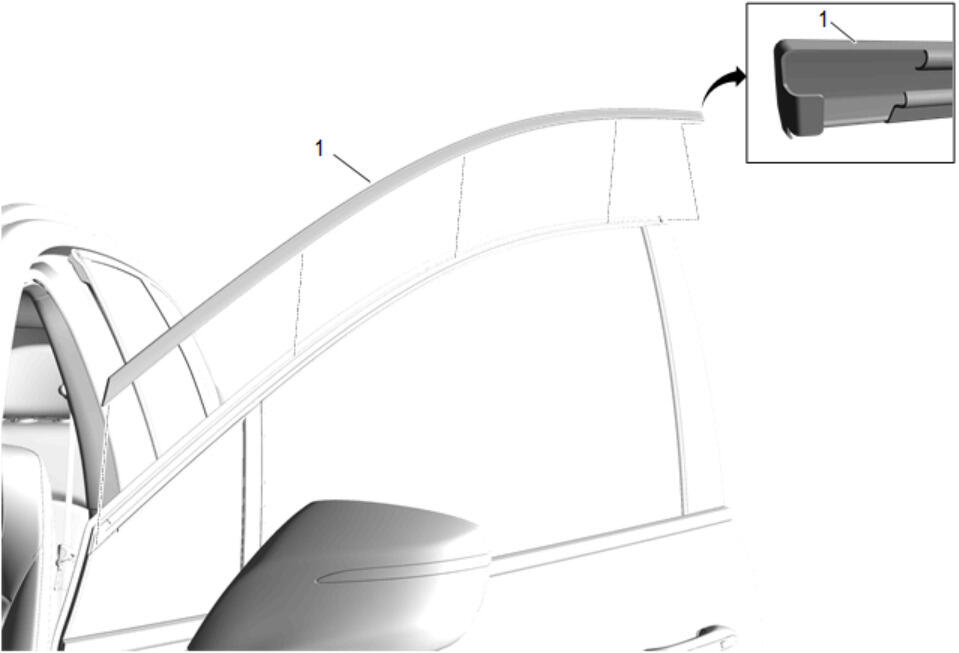

  7. GM5325697Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Upper Reveal Molding (1) - Install - Front Side Door Window Upper Reveal Molding Replacement
