Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Inside Handle Cable (1) - Install - Rear Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Cable (1) - Install - Rear Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Tighten in proper sequence to prevent damage to the latch mechanism.

Rear Side Door Latch Bolt (1) - Install and tighten [ 4x ] 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Bracket (3) - Install - Rear Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

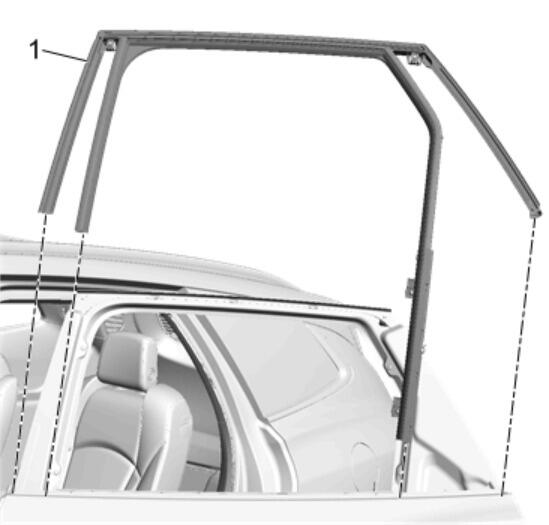

Rear Side Door Window Weatherstrip (1) - Install - Rear Side Door Window Weatherstrip Replacement
Connect the electrical connector.
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
