Front Side Door Lock Cylinder Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Latch Replacement

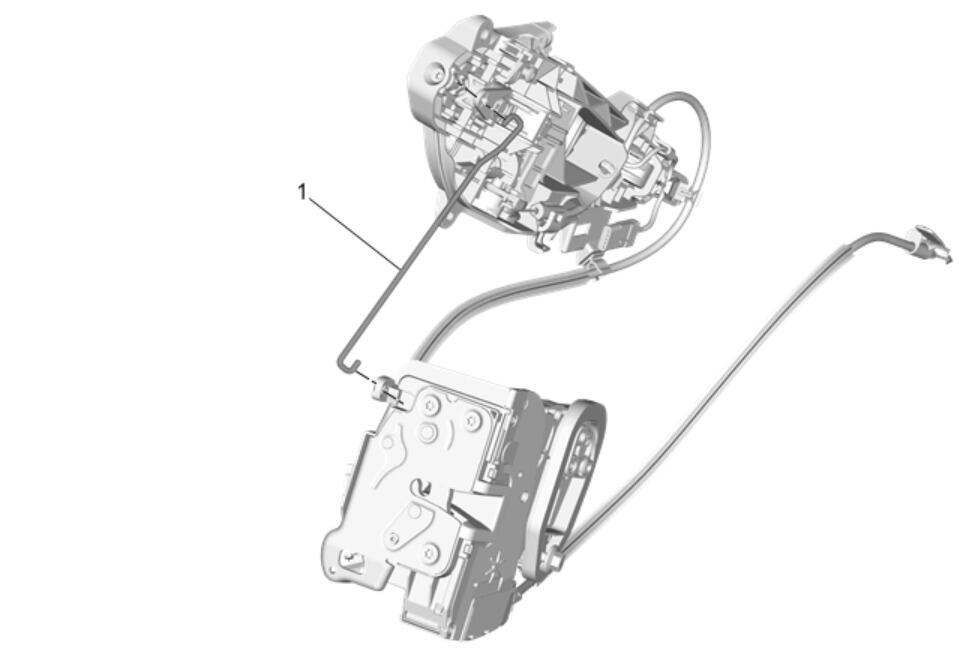

1	Front Side Door Lock Cylinder Rod Procedure Remove the front side door lock cylinder rod from the lock cylinder by turning the housing bracket clockwise. Release the lock cylinder rod from the latch only. Do NOT remove the door handle cables from the latch.

Callout

Component Name

Front Side Door Lock Cylinder Rod

Procedure

Remove the front side door lock cylinder rod from the lock cylinder by turning the housing bracket clockwise.
Release the lock cylinder rod from the latch only. Do NOT remove the door handle cables from the latch.
