Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inside Handle Cable (1) - Install - Front Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) - Install - Front Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Door Outside Handle Bracket (1) @ Front Side Door Latch (2) - Install
Courtesy of GENERAL MOTORS COMPANY

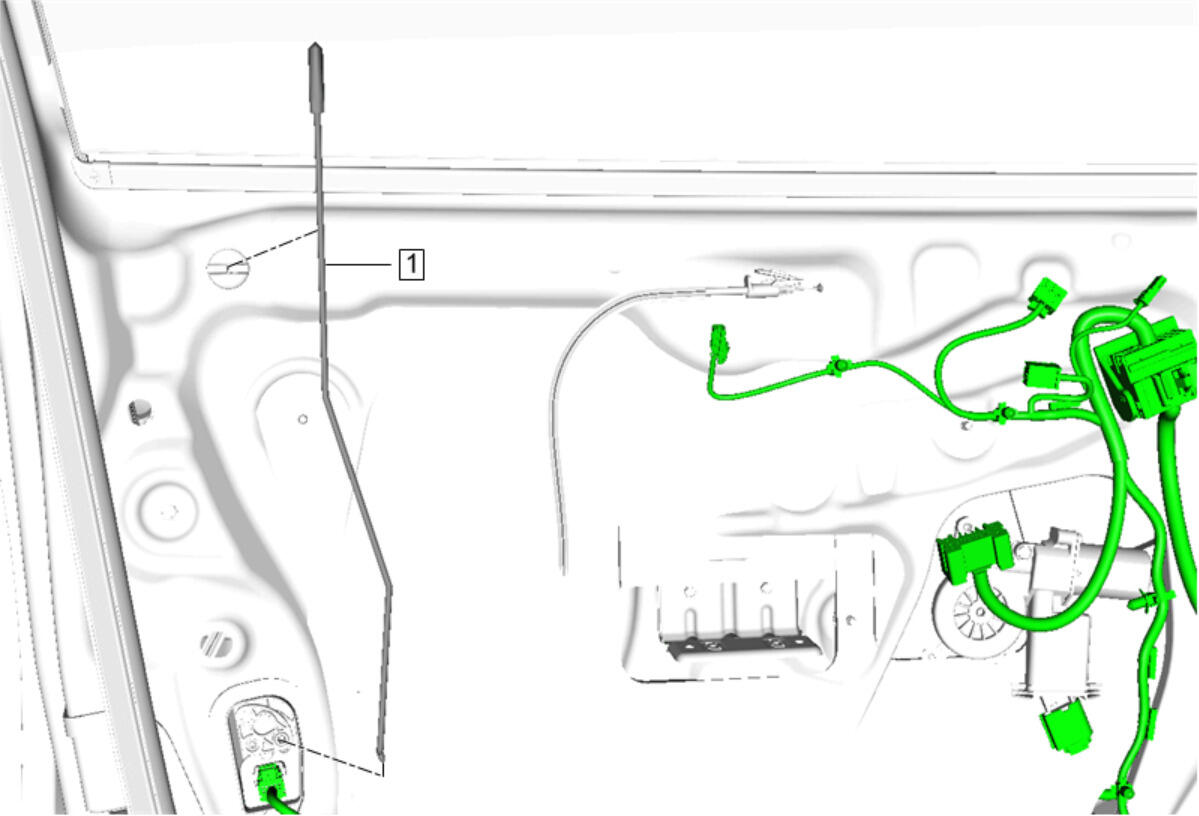

Front Side Door Locking Rod Knob (1) - Install - Front Side Door Locking Rod Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Install and torque the four latch bolts in proper sequence to prevent damage to the latch mechanism.

Front Side Door Latch Bolt (1) @ Front Side Door Latch (2) - Install and tighten [ 4x ] 9 N.m (80 lb/in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket (1) - Install - Front Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer - Rear (2) - Install - Front Side Door Window Channel Retainer Replacement (Front) , or Front Side Door Window Channel Retainer Replacement (Rear)
Courtesy of GENERAL MOTORS COMPANY

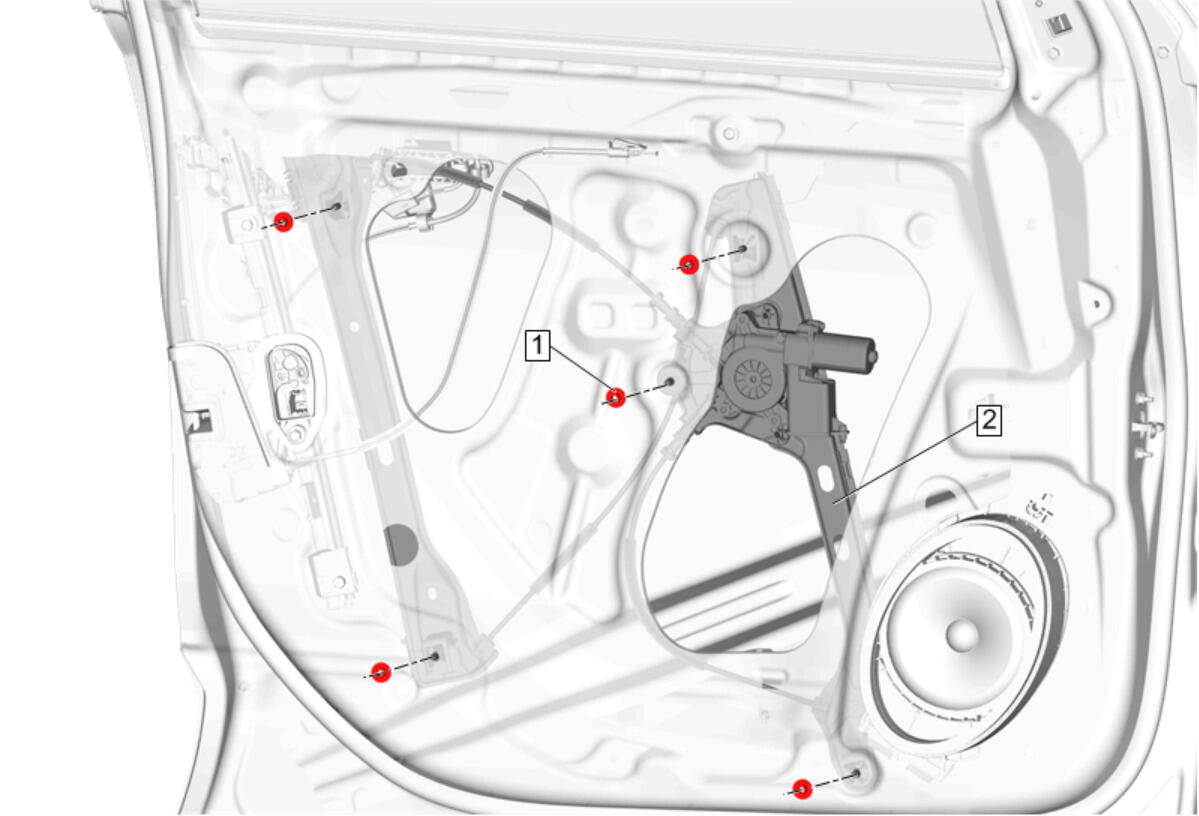

Front Side Door Window Regulator (2) - Install - Front Side Door Window Regulator Replacement
Inspect the door latch and outside handle for proper operation before installing the door trim.
