Headlamp Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

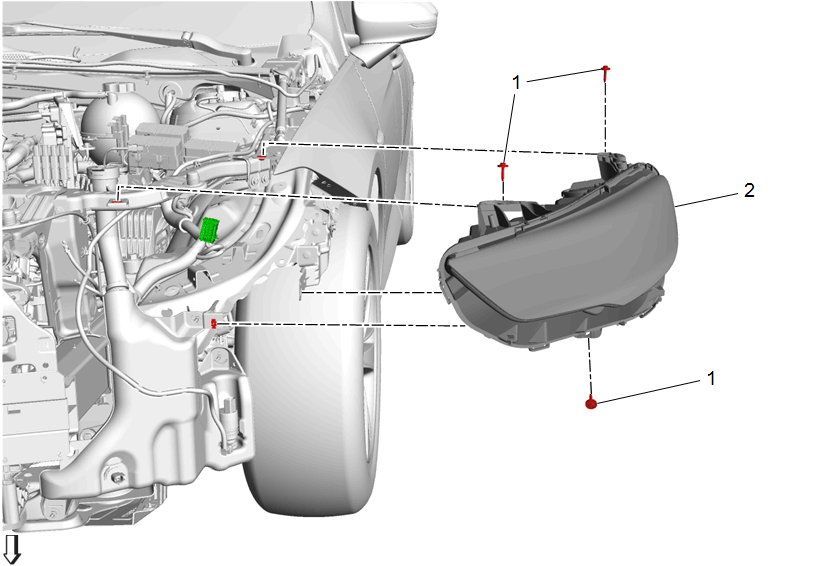

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Headlamp Opening Bracket Replacement
1	Headlamp Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Transfer components as necessary. After installation, program the headlamp control module. Control Module References After installation, aim the headlamp if necessary. Headlamp Aiming

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Headlamp Opening Bracket Replacement

Headlamp Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
After installation, program the headlamp control module. Control Module References
After installation, aim the headlamp if necessary. Headlamp Aiming
