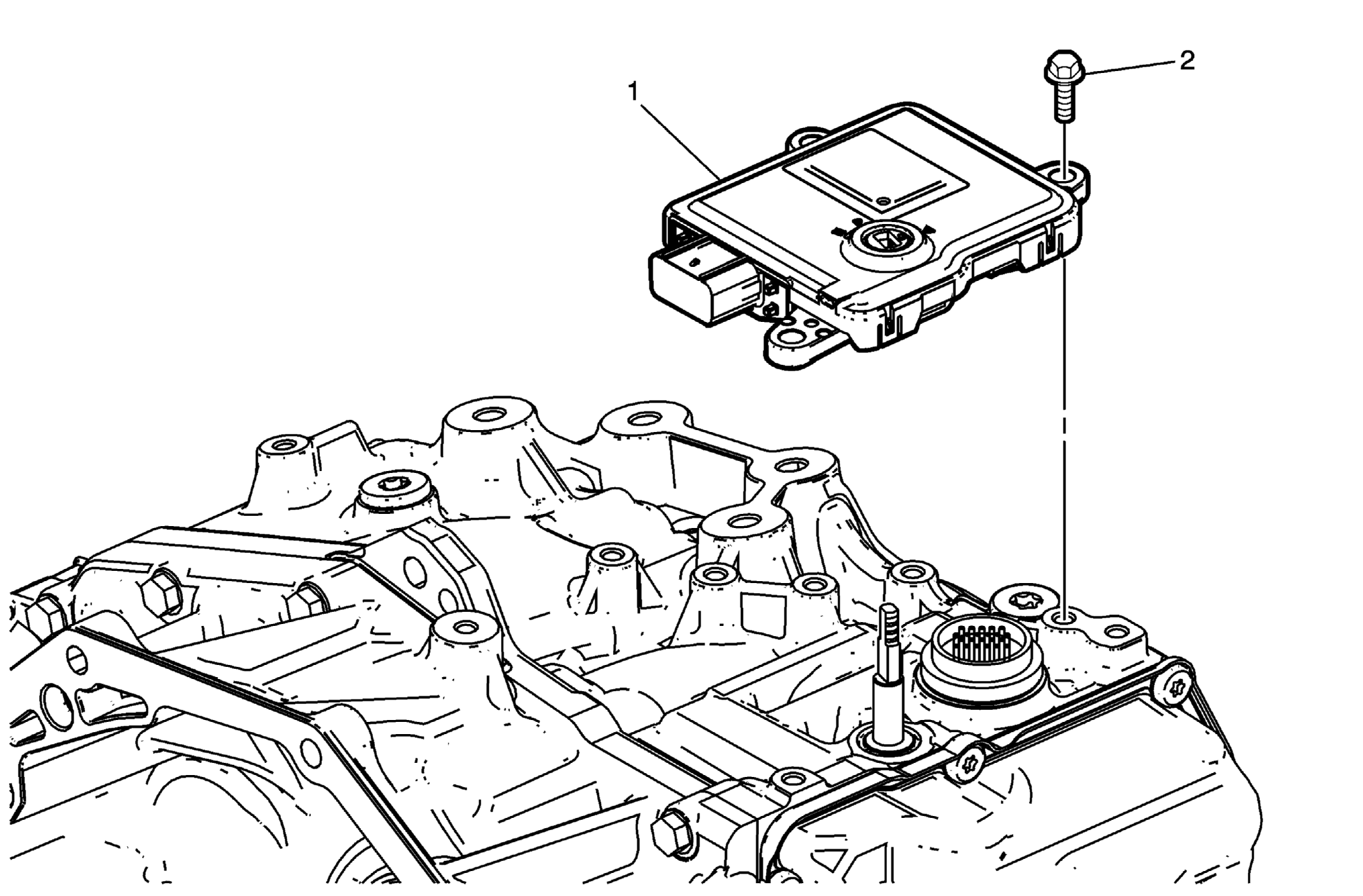

Transmission Control Module Installation

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Control Module
2	Transmission Control Module Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
