Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement: Installation

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

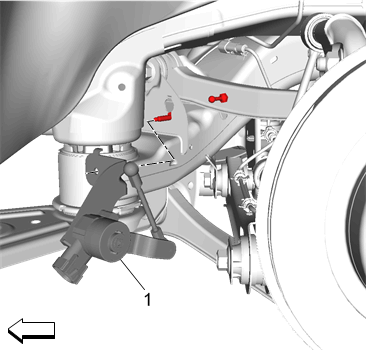

Rear Suspension Automatic Forward Lighting Leveling Position Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

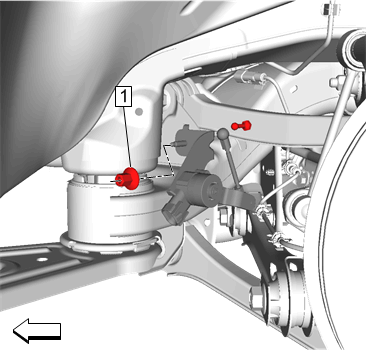

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut (1) - Install and tighten 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

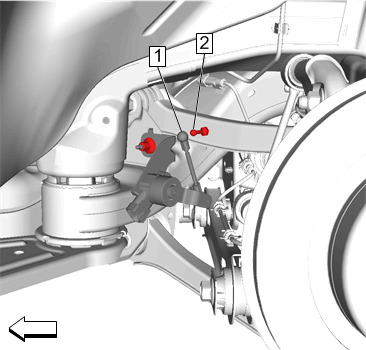

Link Rod (1) @ Ball Stud (2) - Connect
Connect the electrical connector.
Install the rear suspension automatic forward lighting leveling position sensor harness clip to the underbody rear side rail.
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
